Warp9 Direct Bar Mount

TRANSFORMER DIRECT BAR MOUNT STEM

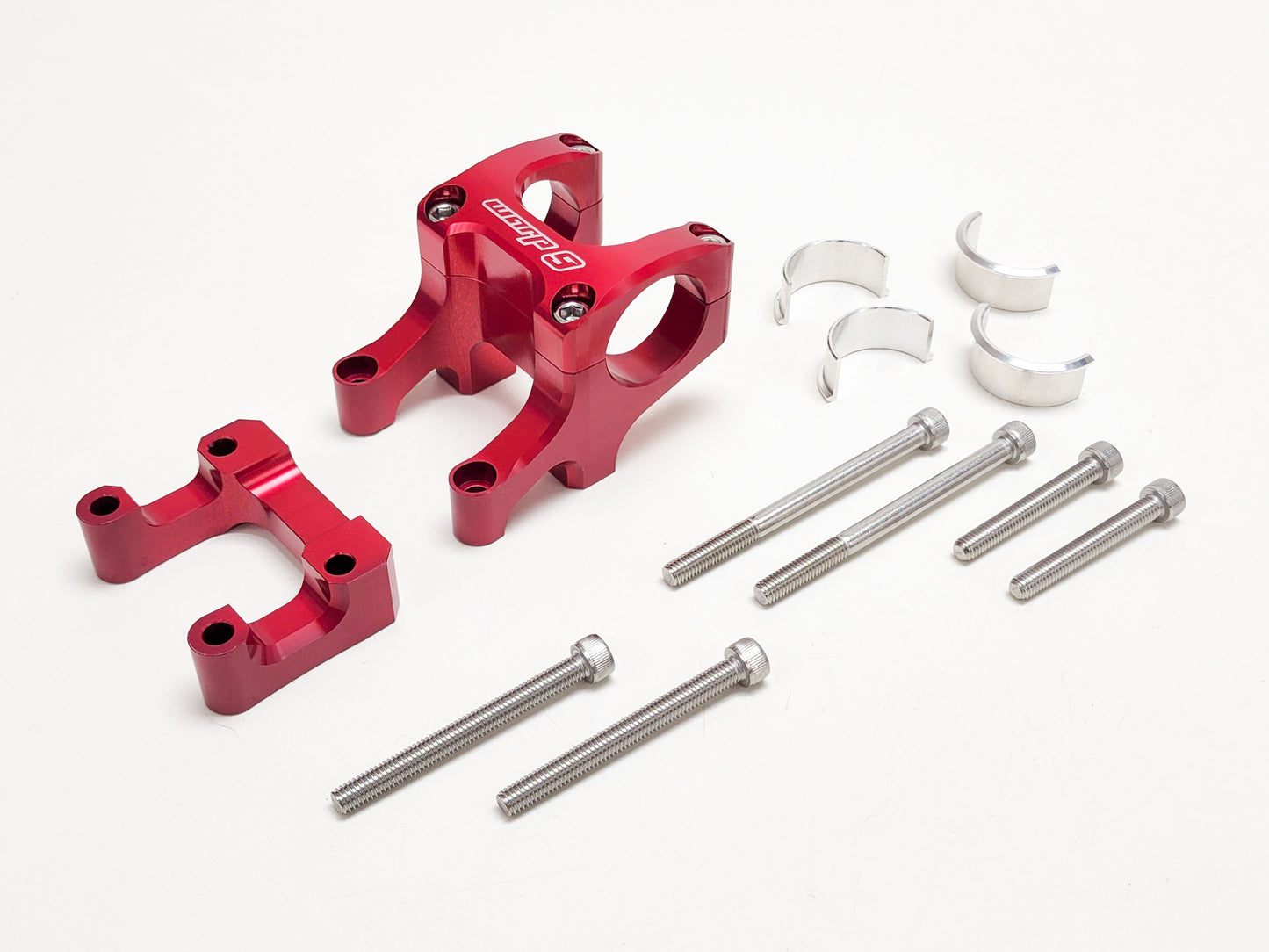

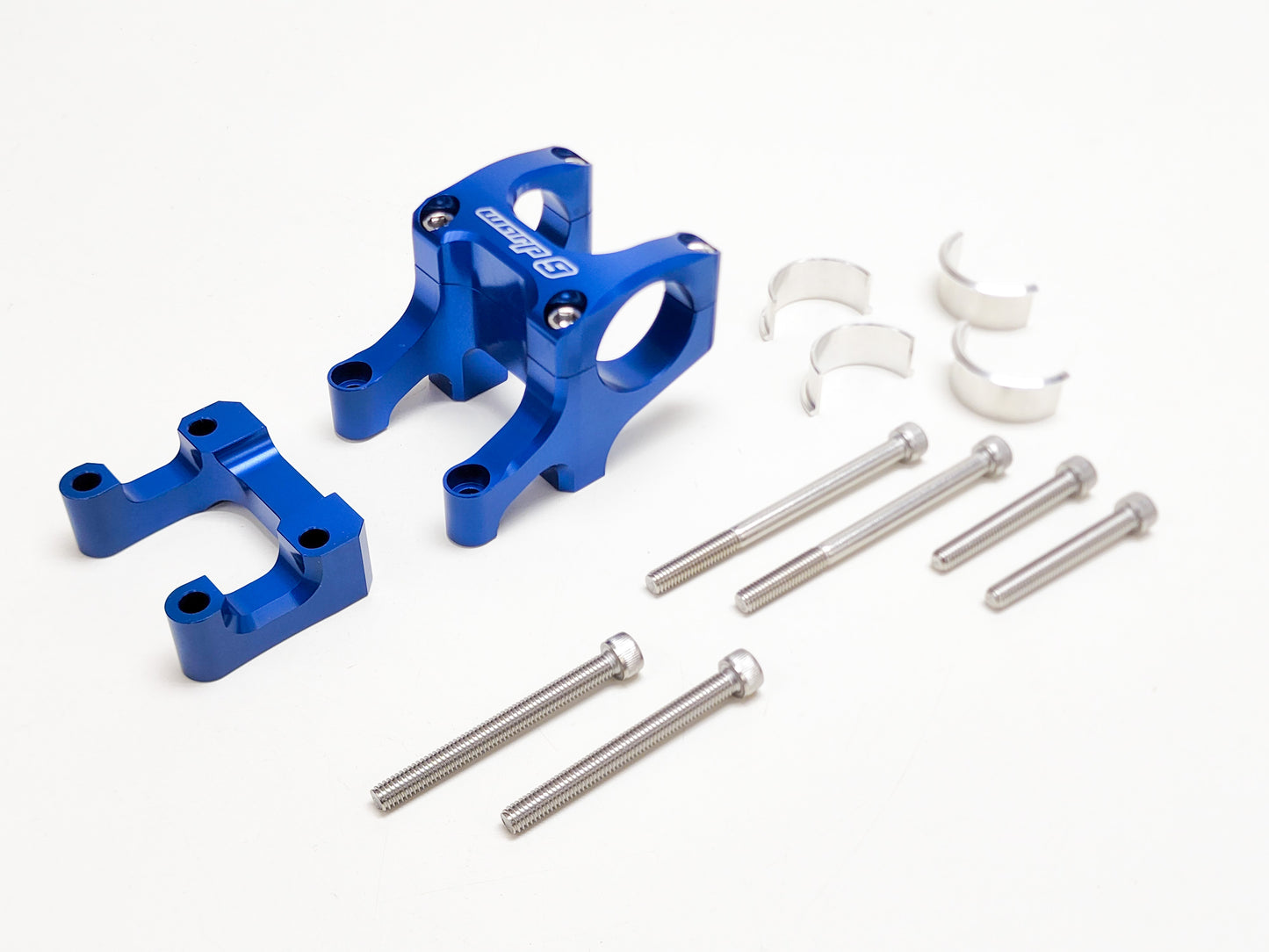

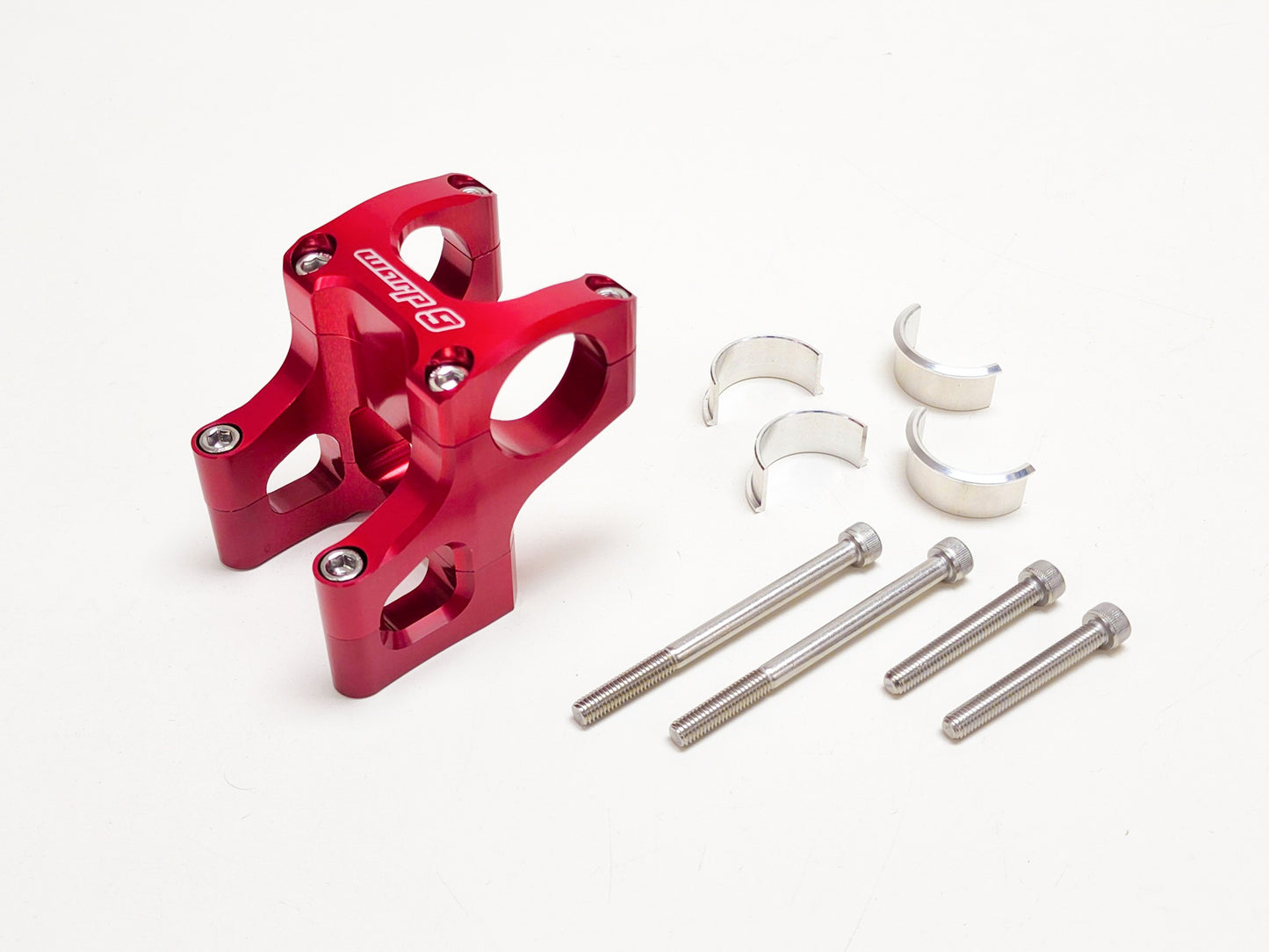

• CNC Machined from 7075T6 aluminum

• Fits MX bars with the included 28.6mm shims

• Fits Oem and Warp 9 Bars in 31.8m size

• Moves Bars 10mm forward

• OEM height in low position

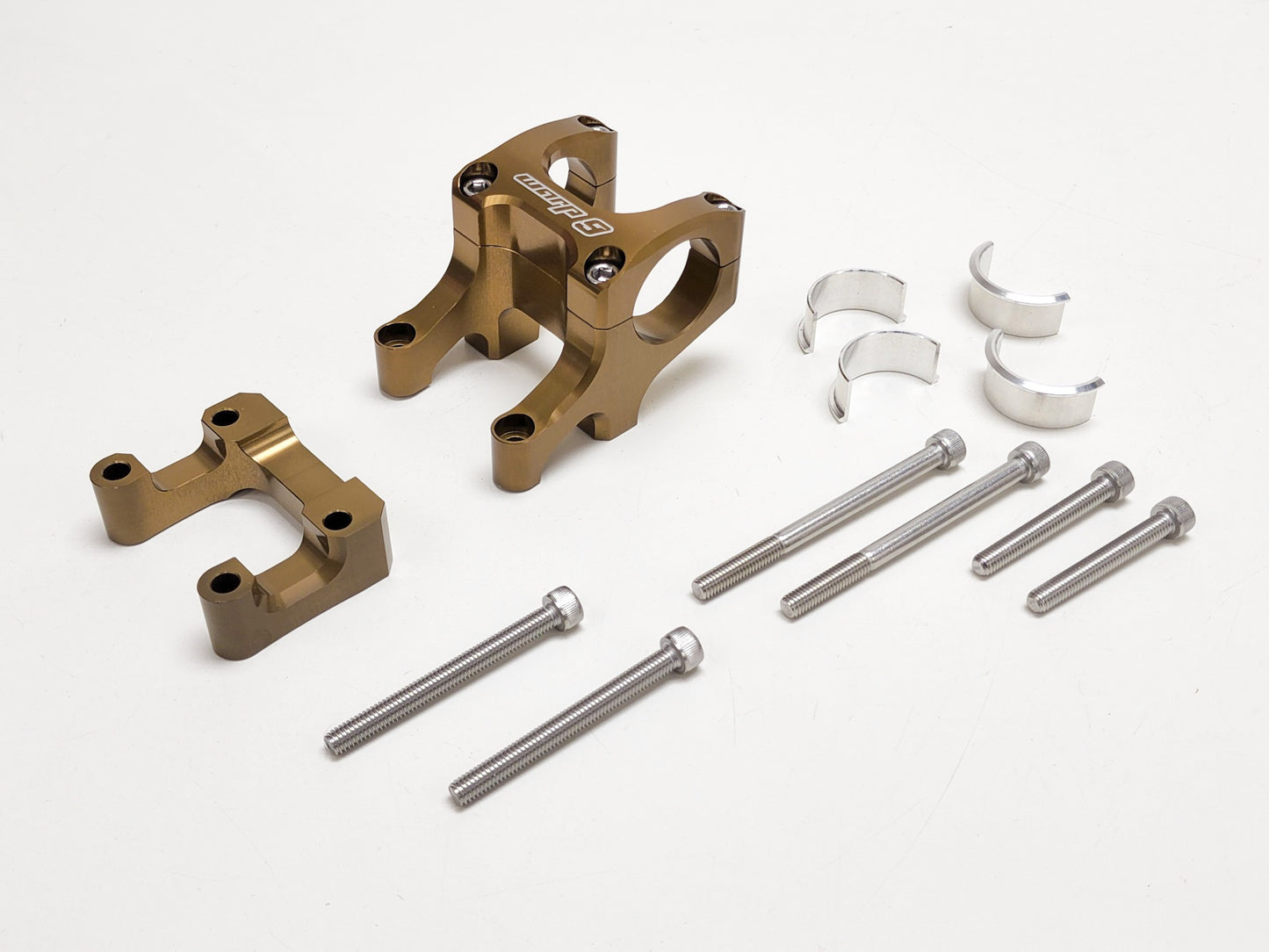

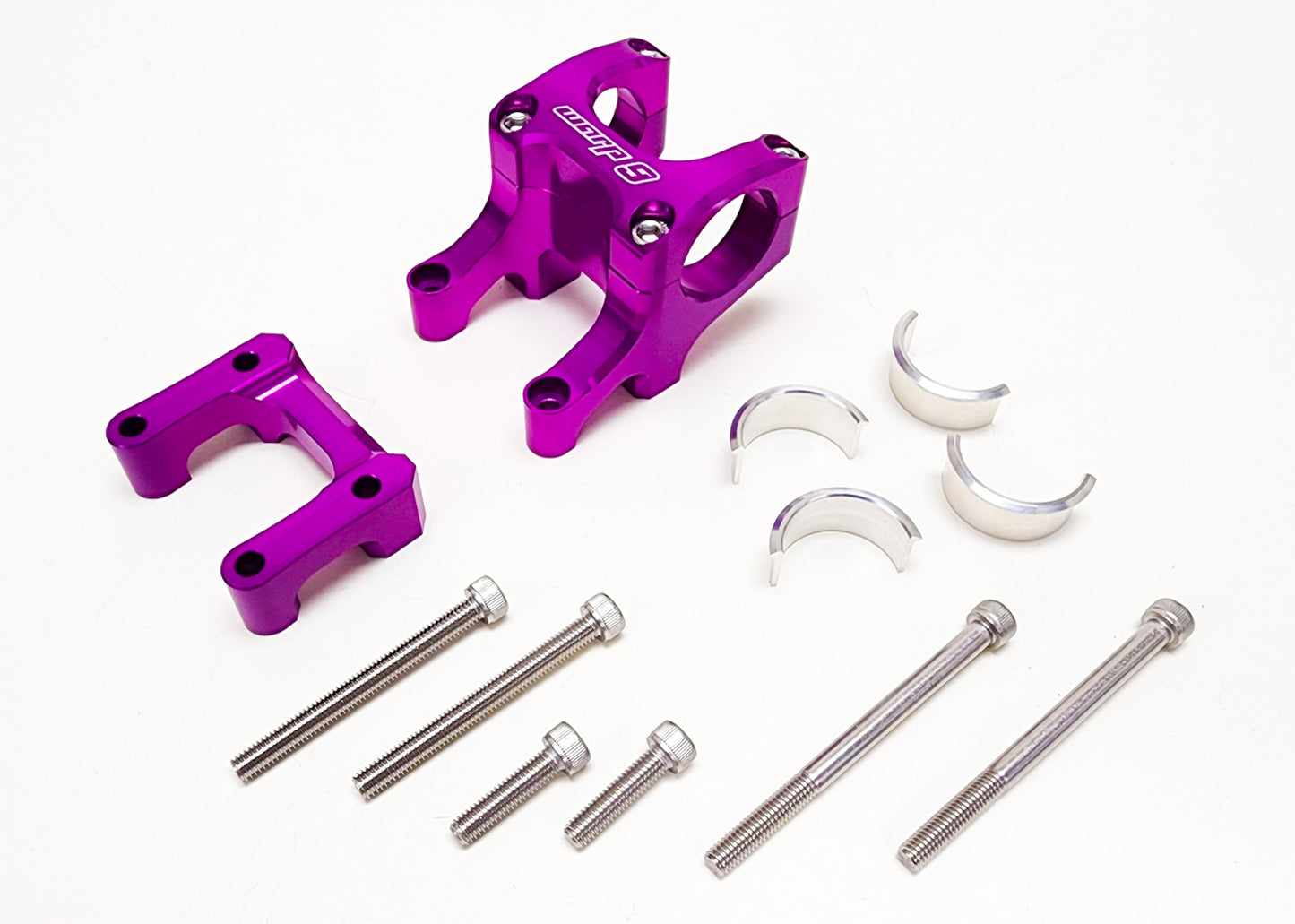

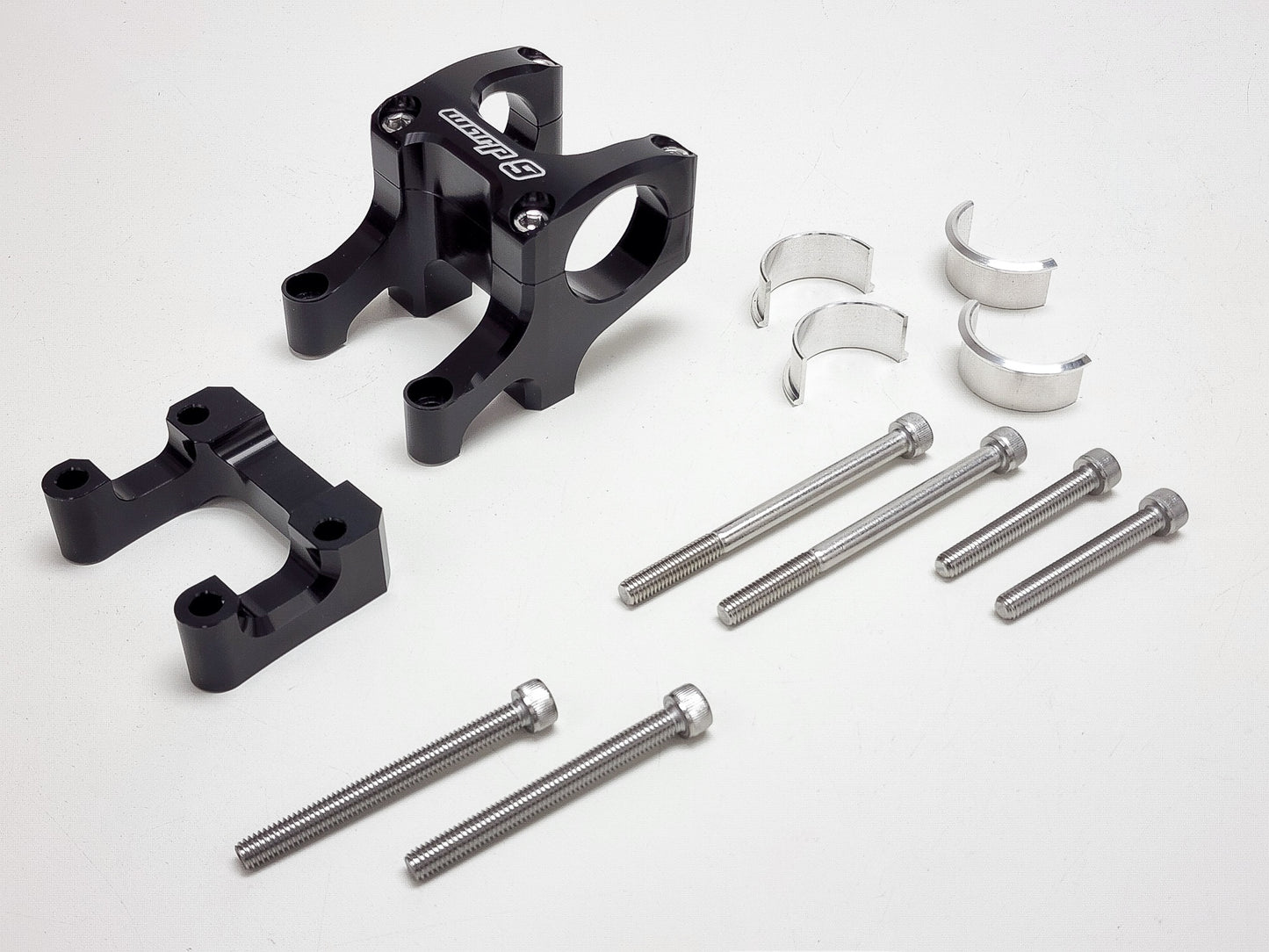

• Add the included spacer to gain 20mm height over stock

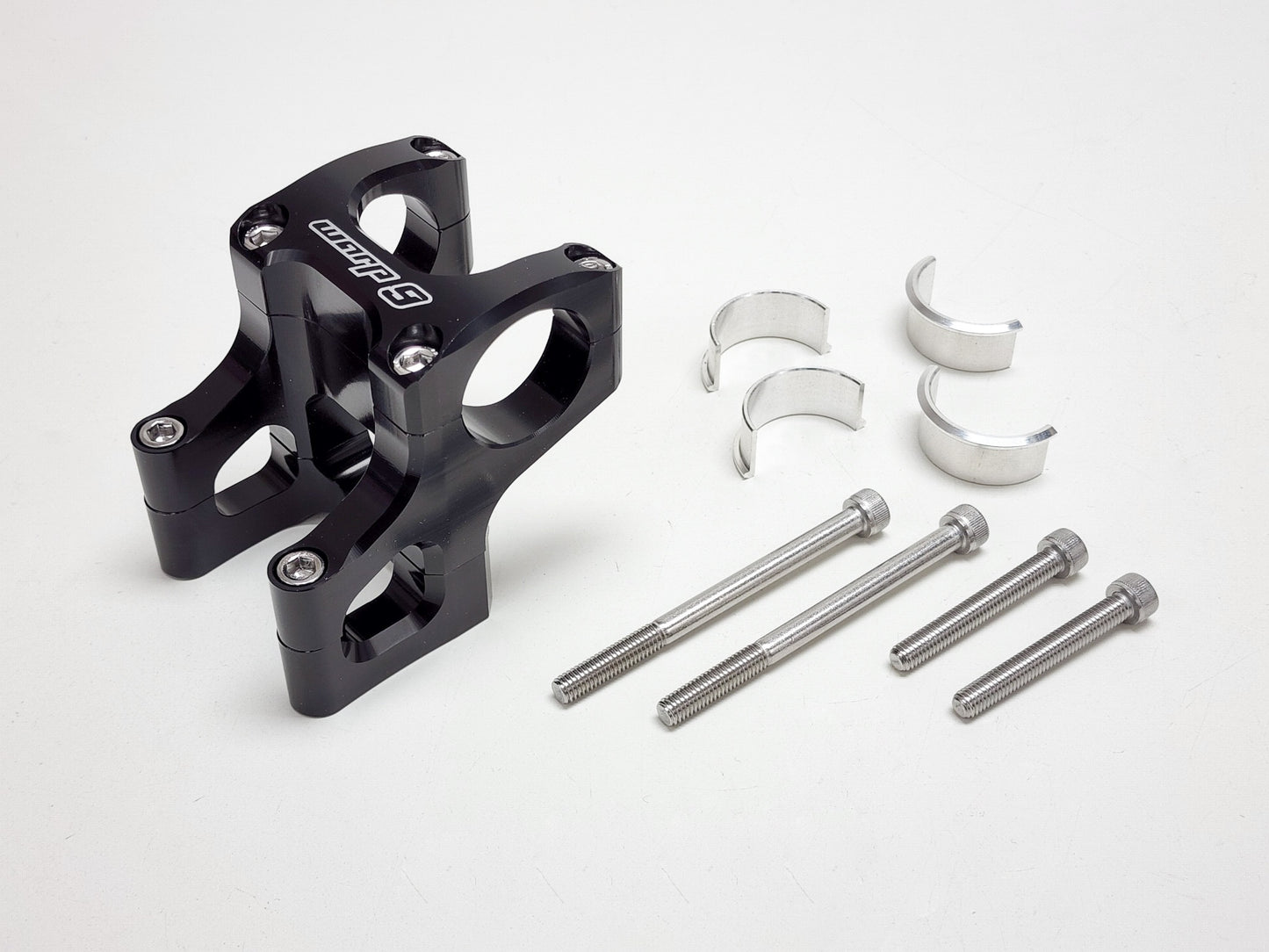

• Bolts included for both low and high configurations

• Fits Fox, Manitou,EXT MX, RST, DNM, DVO & KKE forks with standard

   4 bolt downhill MTN bike top triple clamp

• NOTE: once the oem steer bar mount is removed you will need to get  1 ⅛ steer tube spacers for the oem steer tube to take up the difference of the old bar mount difference. You can use the Warp 9 Steerlock which includes steer tube spacers or source new steer tube spacers aftermarket to complete the installation.

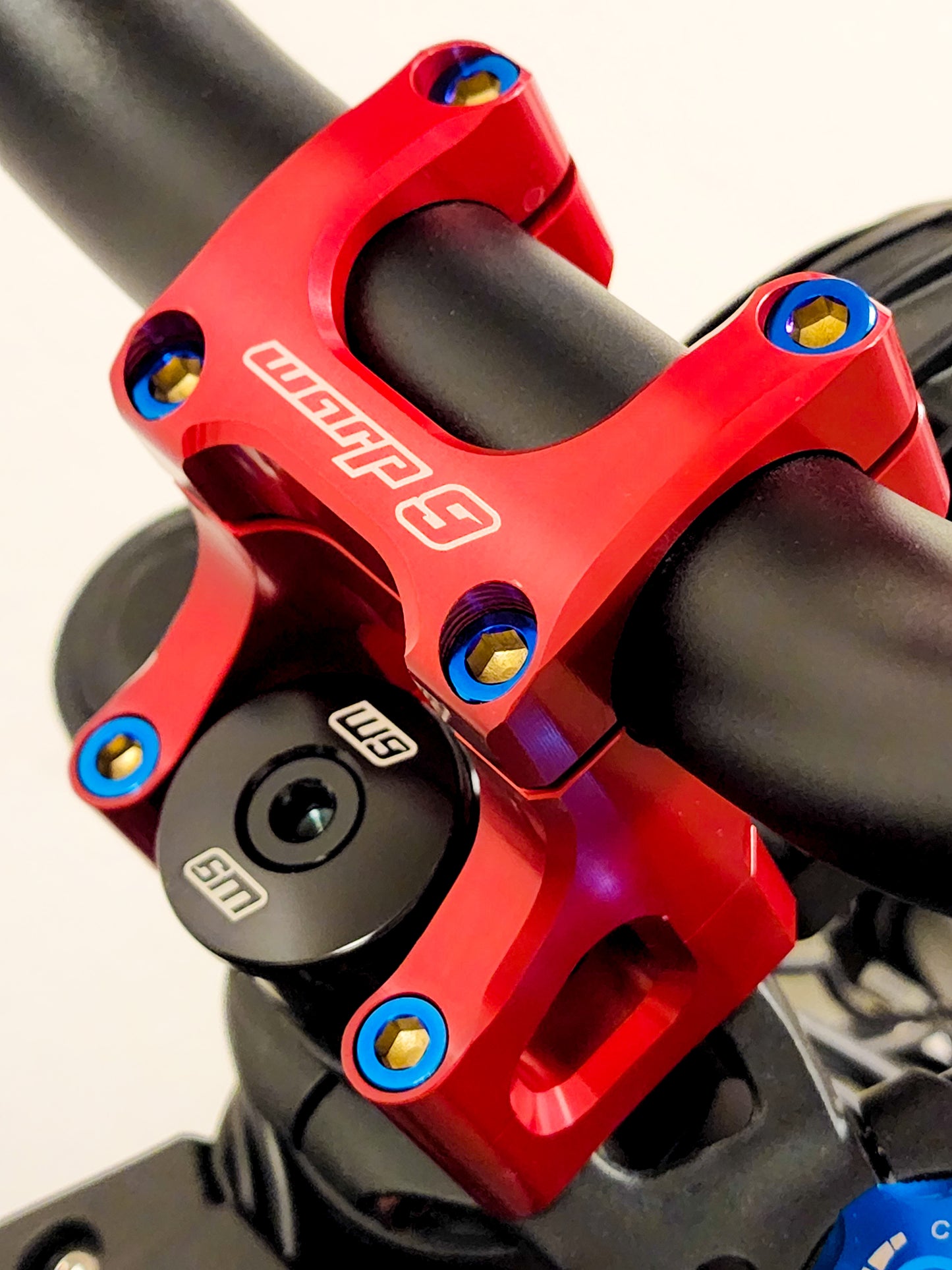

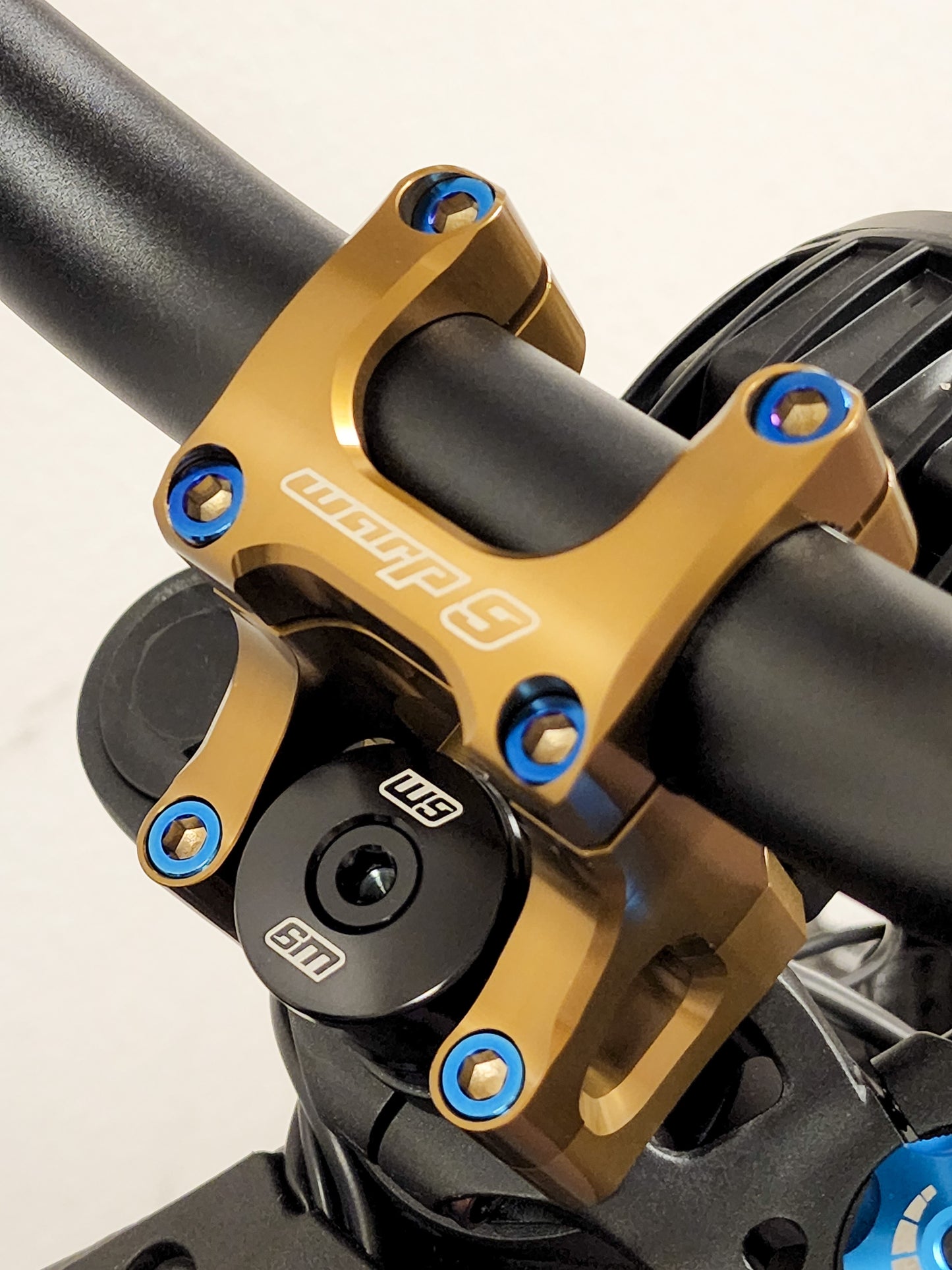

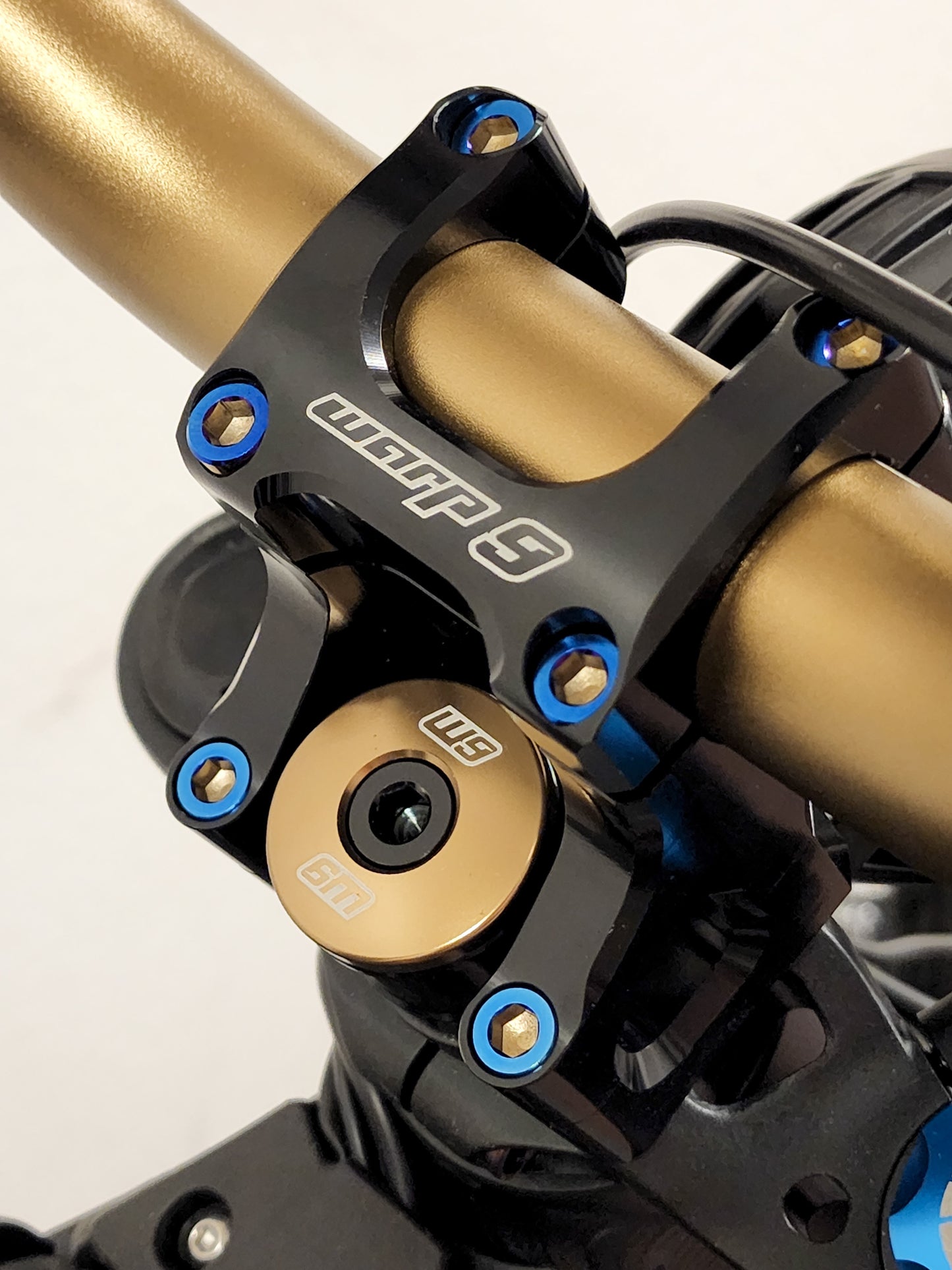

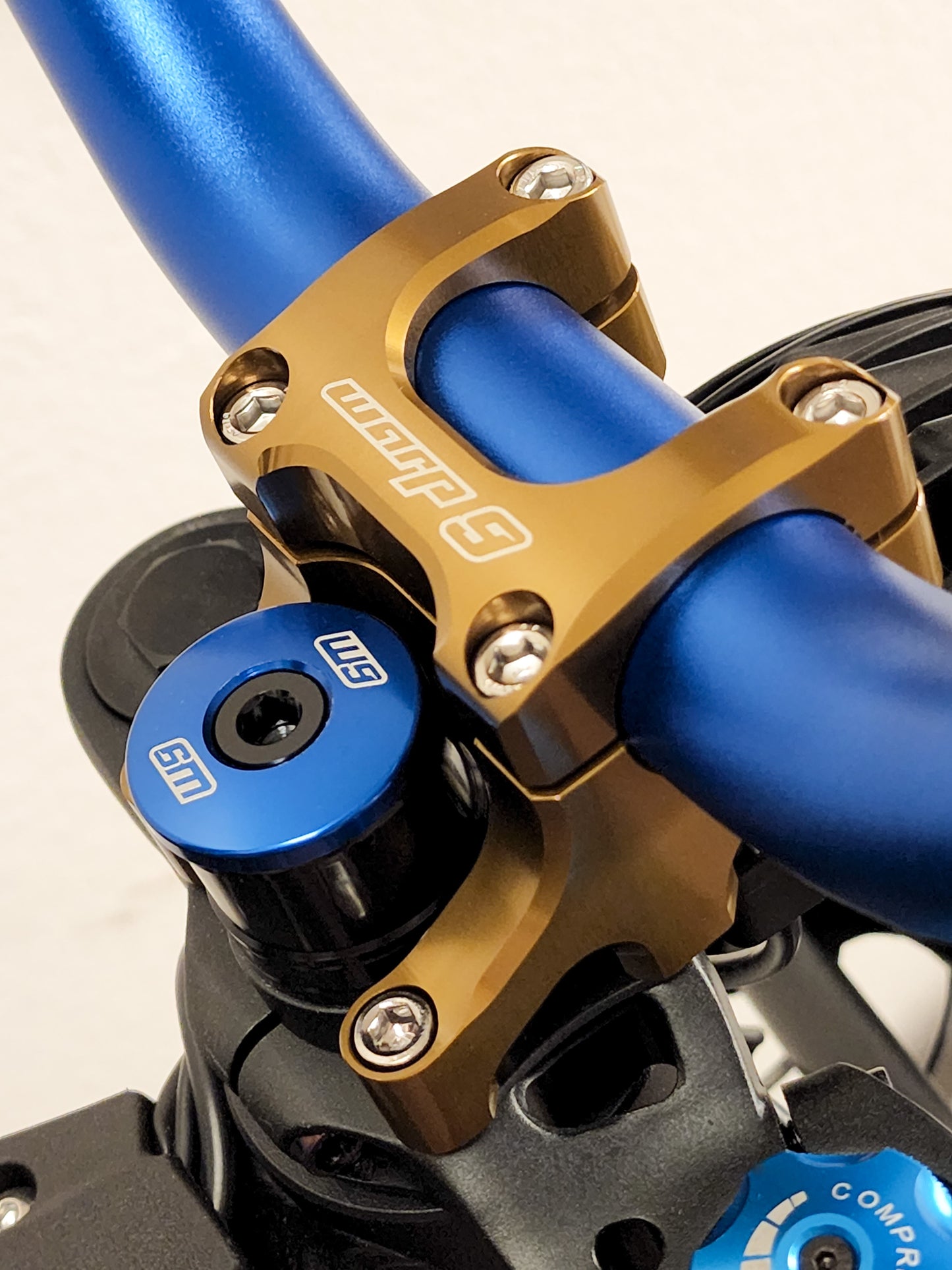

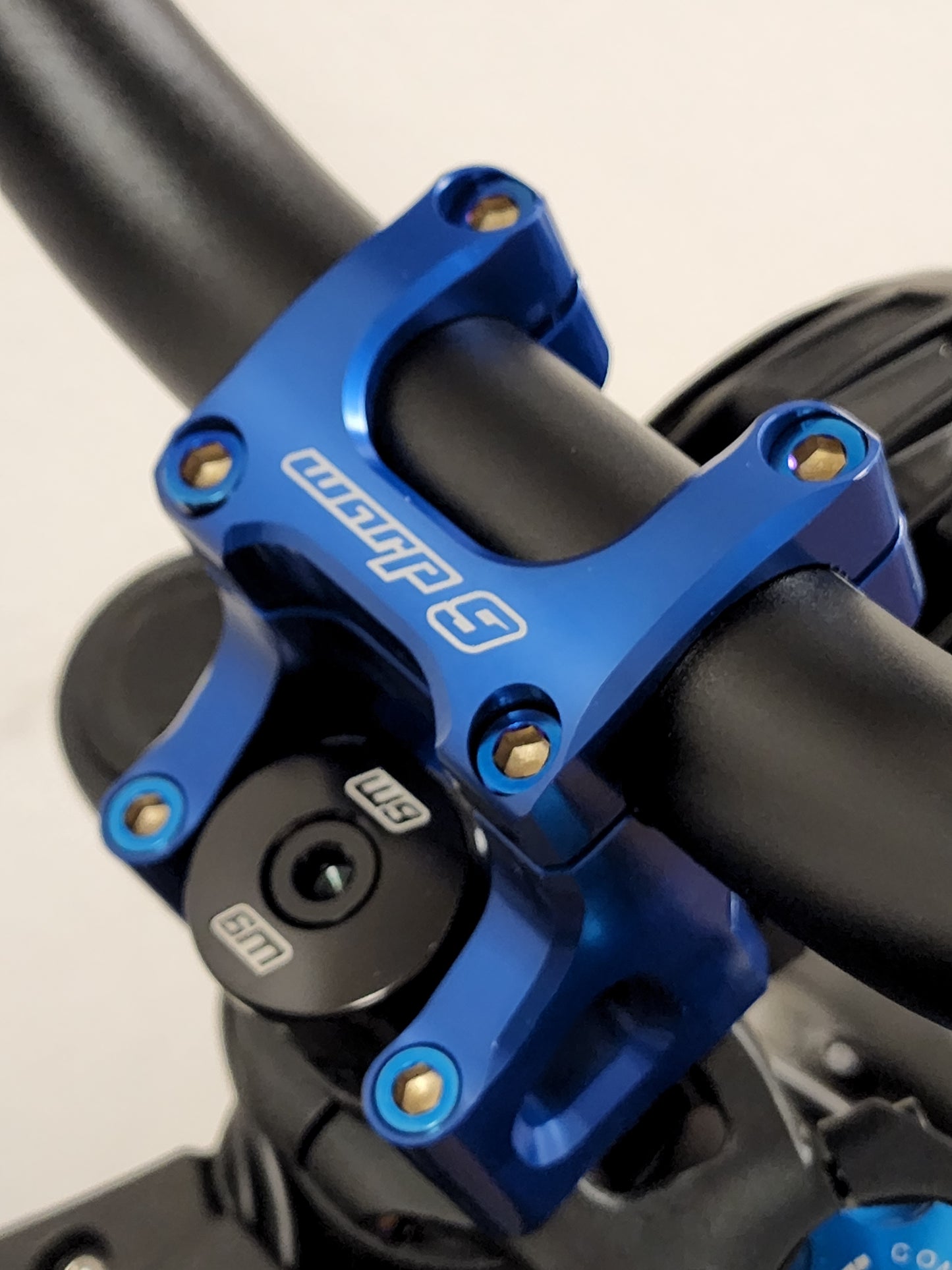

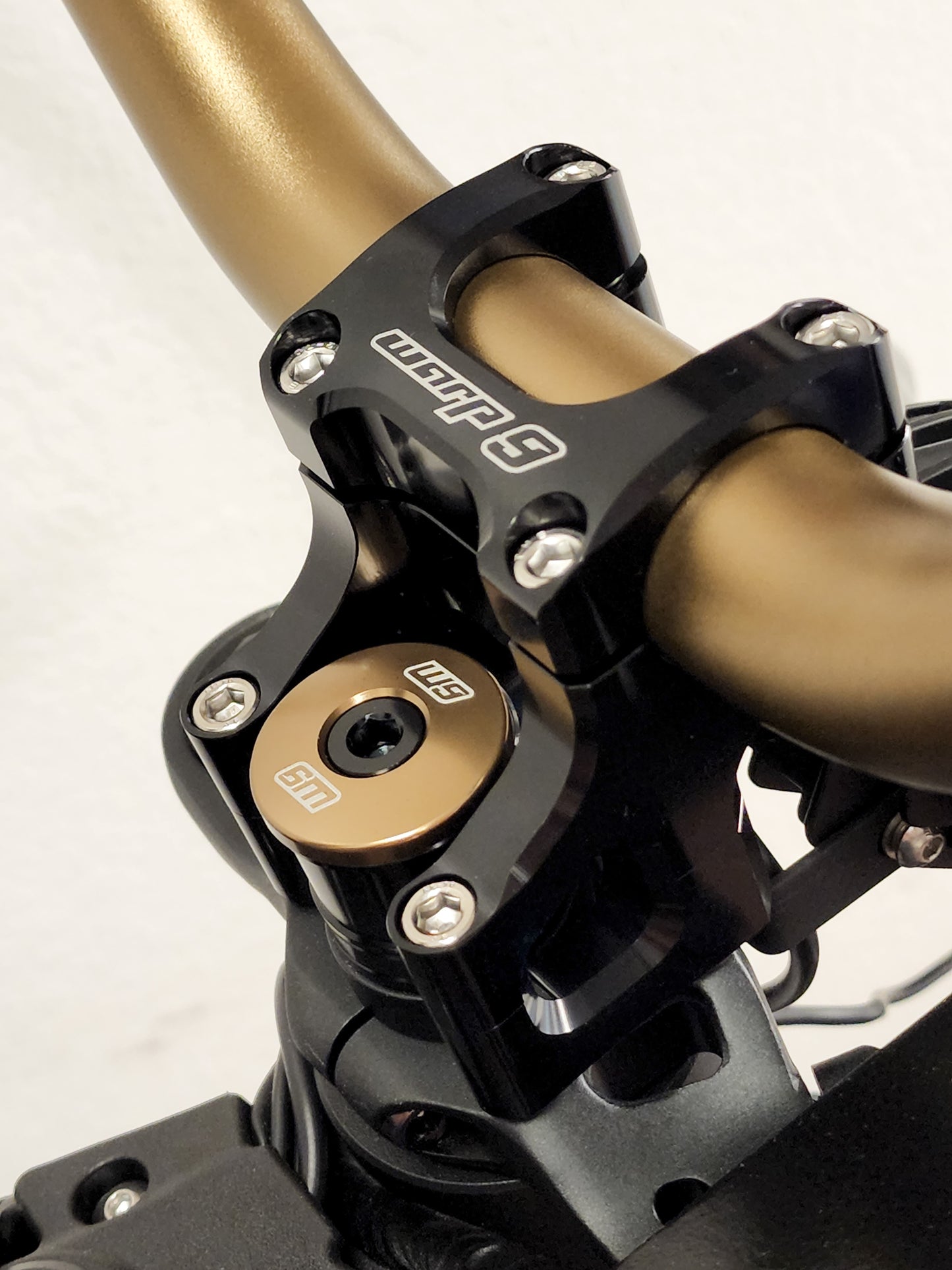

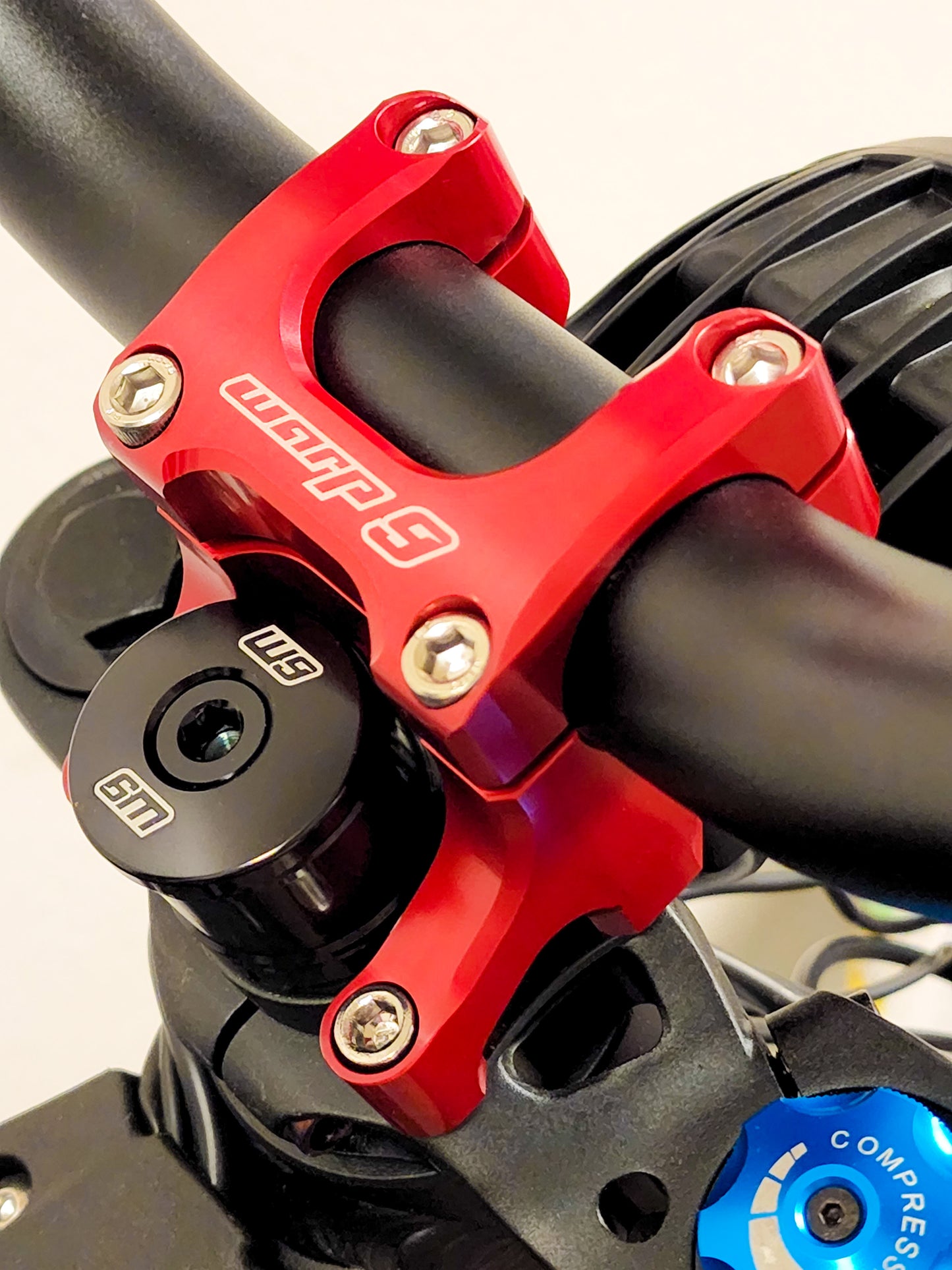

• Shown with optional Titanium Bolt (Burnt Blue)

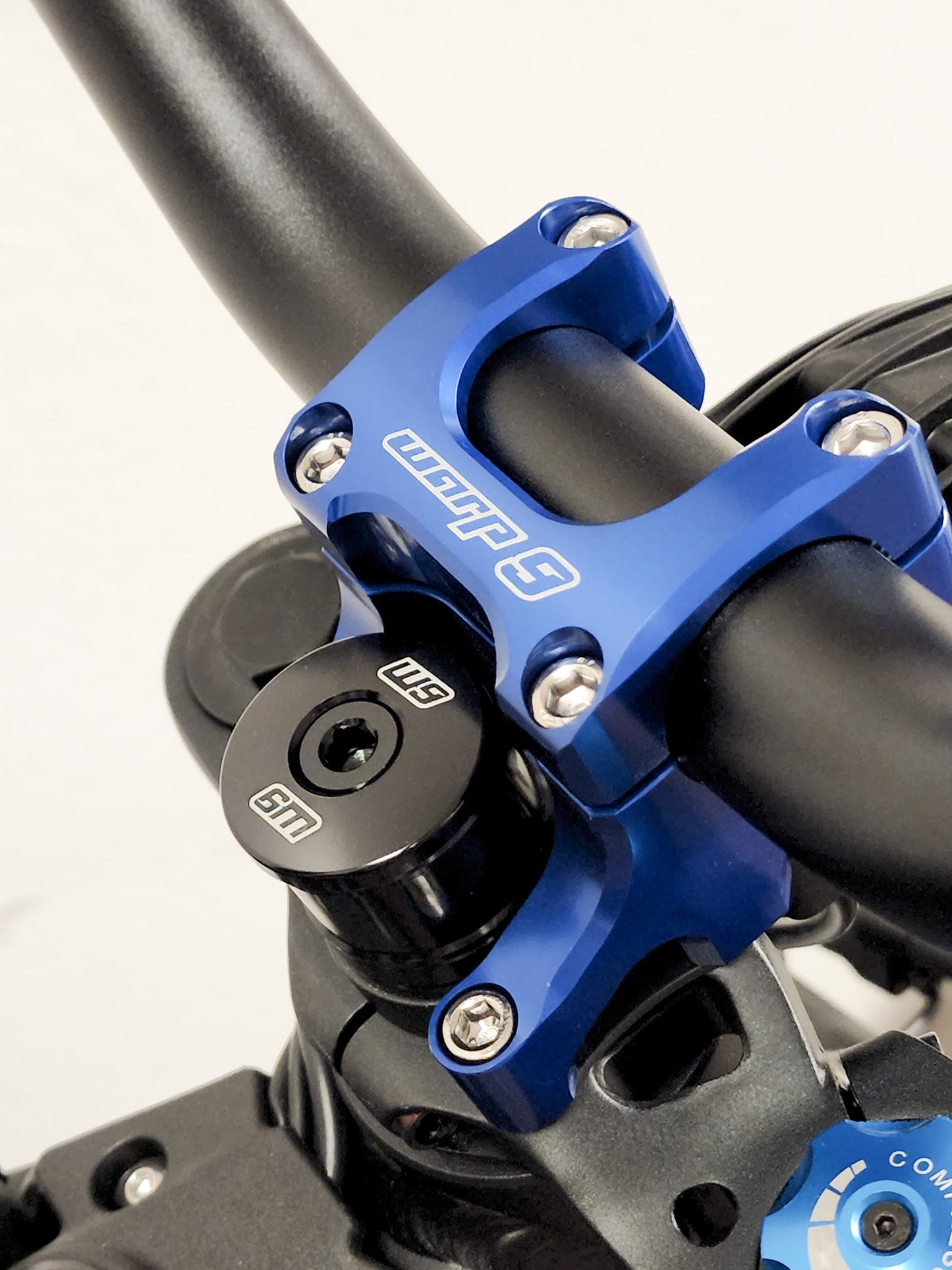

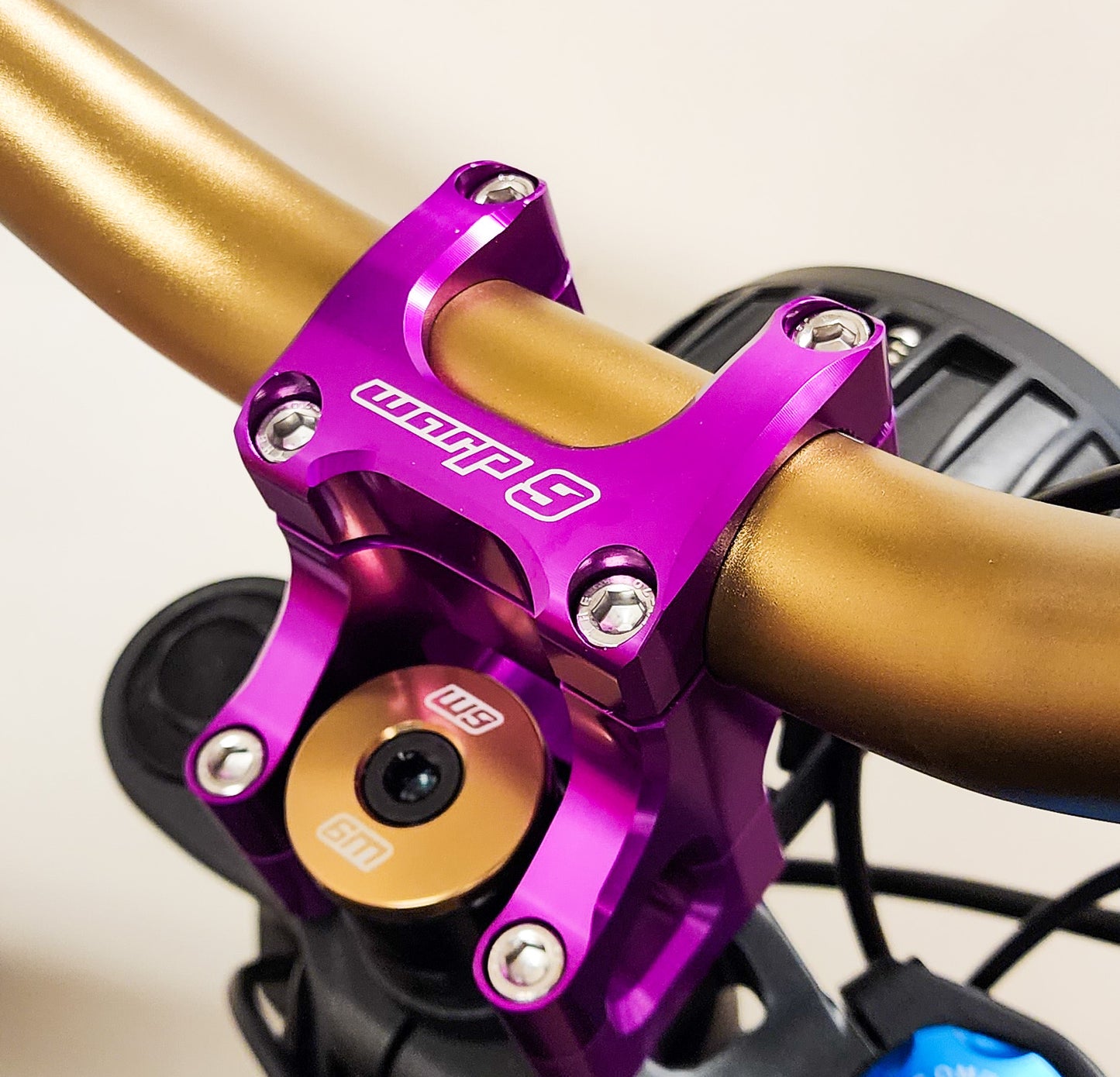

• Shown with optional Warp 9 Steer lock

• Shown with optional Warp 9 3” bars

FITS

SURRON,      LIGHTBEE

 SEGWAY,     X160 & X260

TALARIA,      MX3 & MX4 & XXX

79BIKE,    FALCON M
