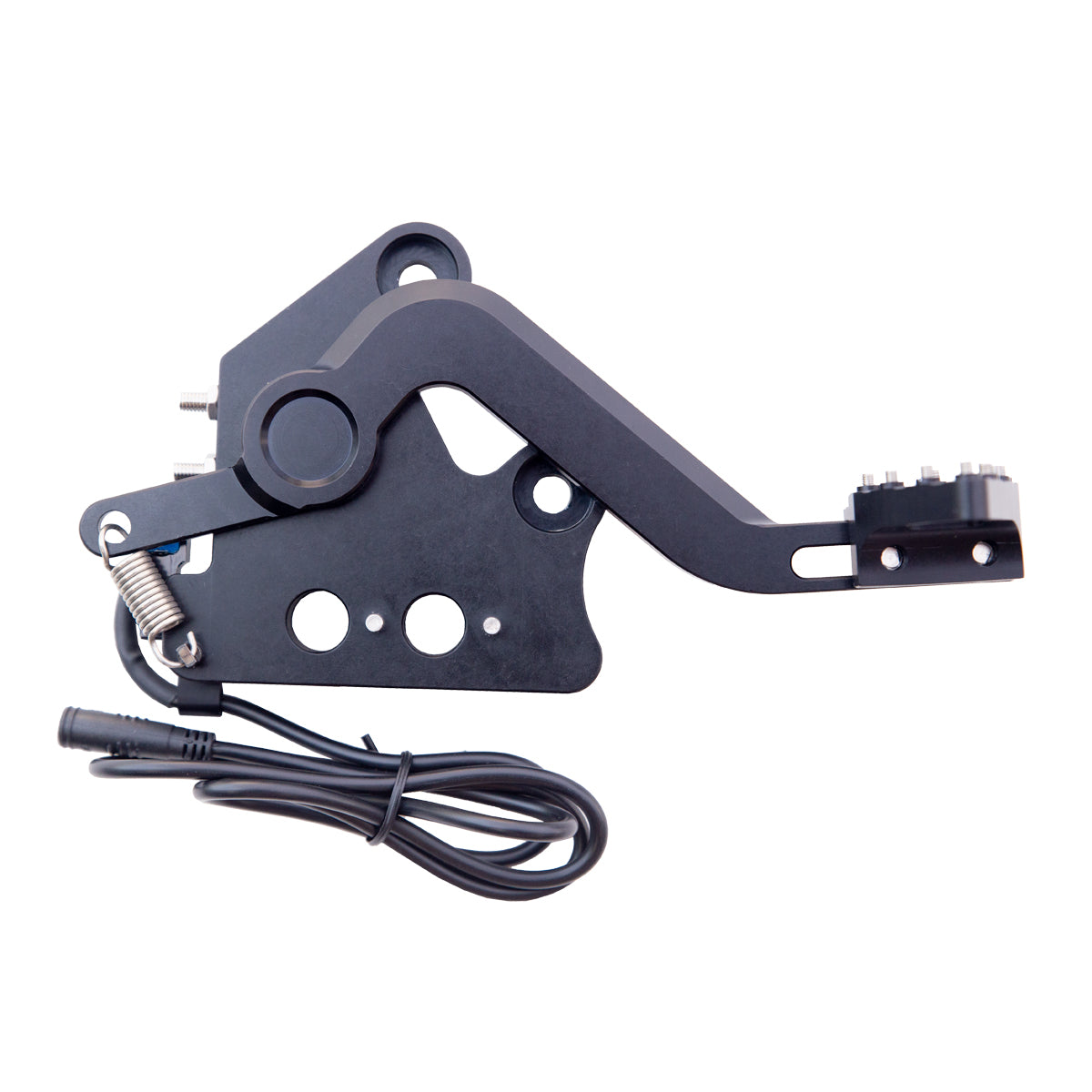

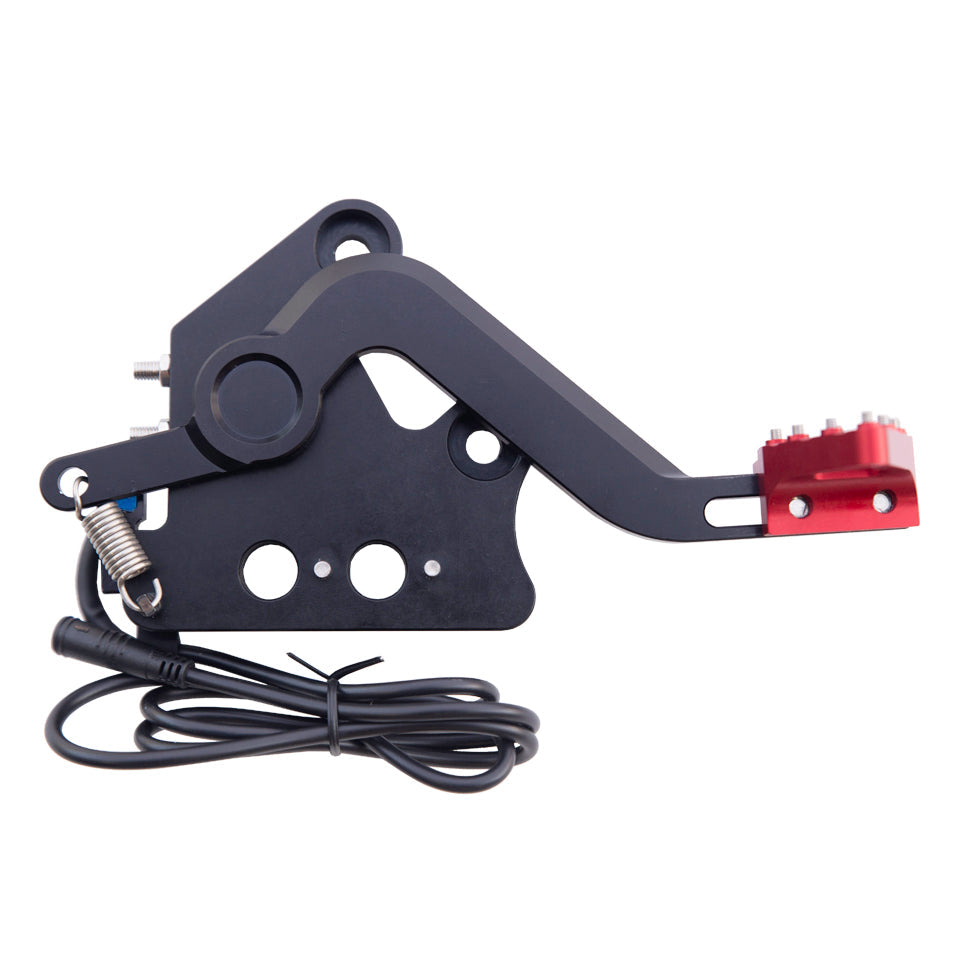

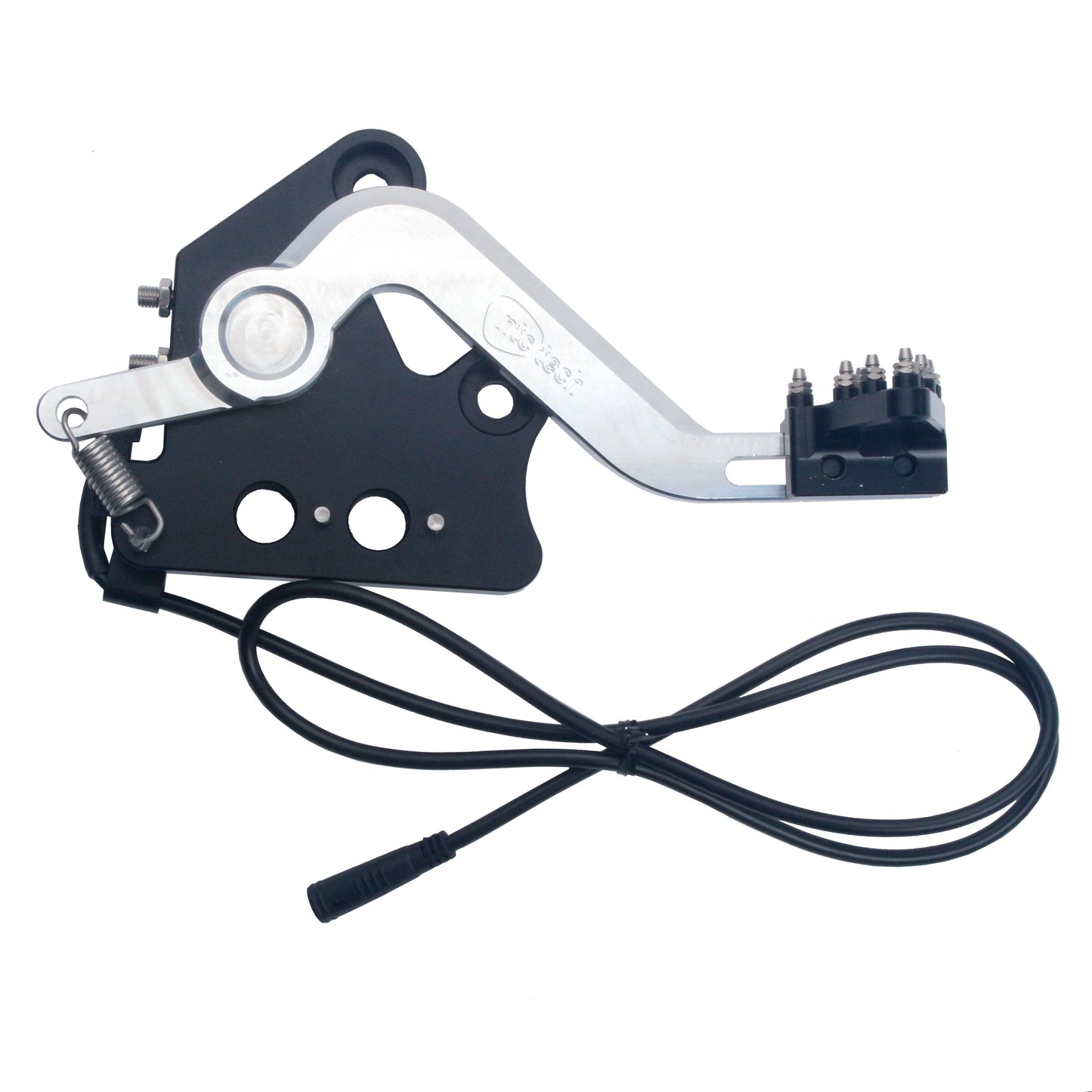

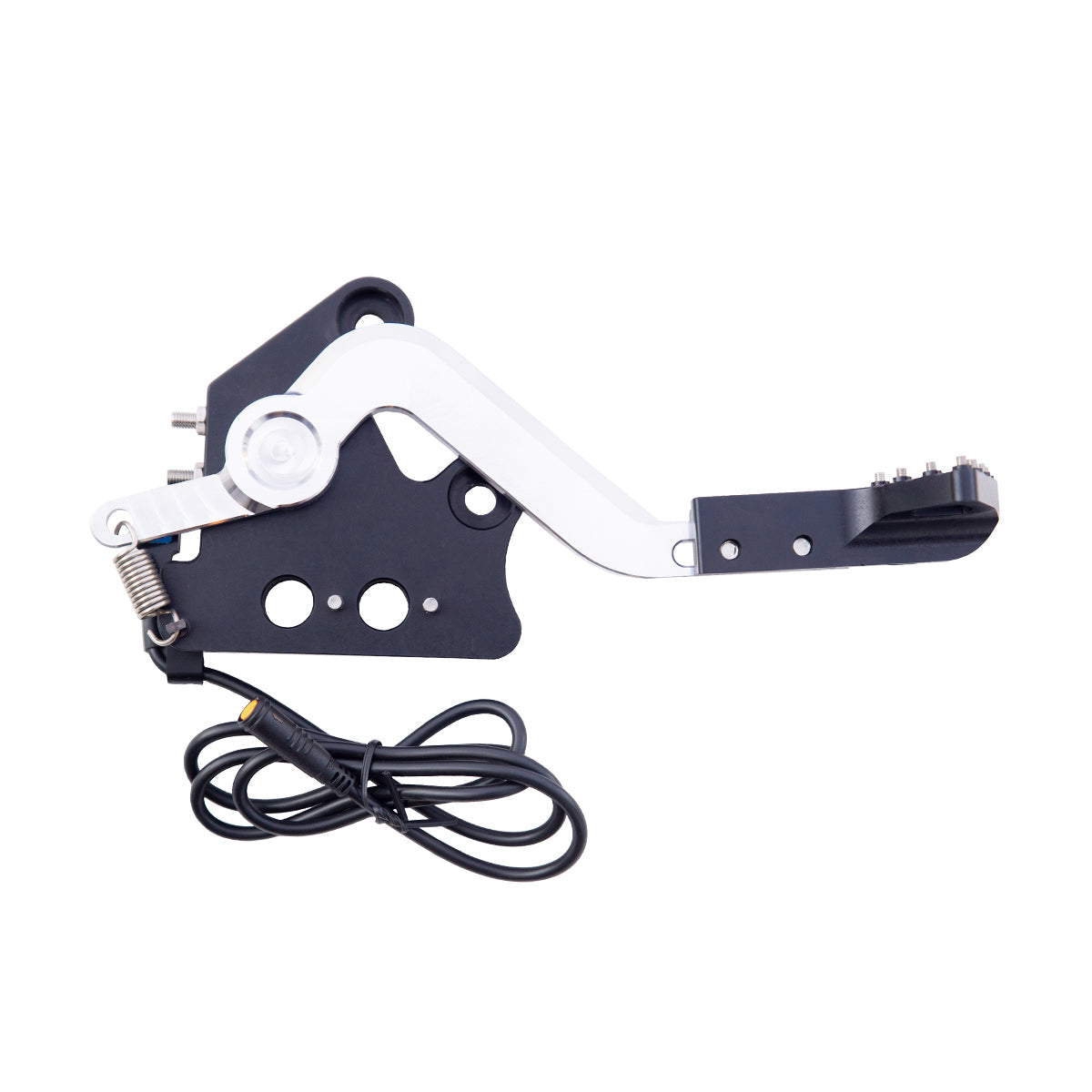

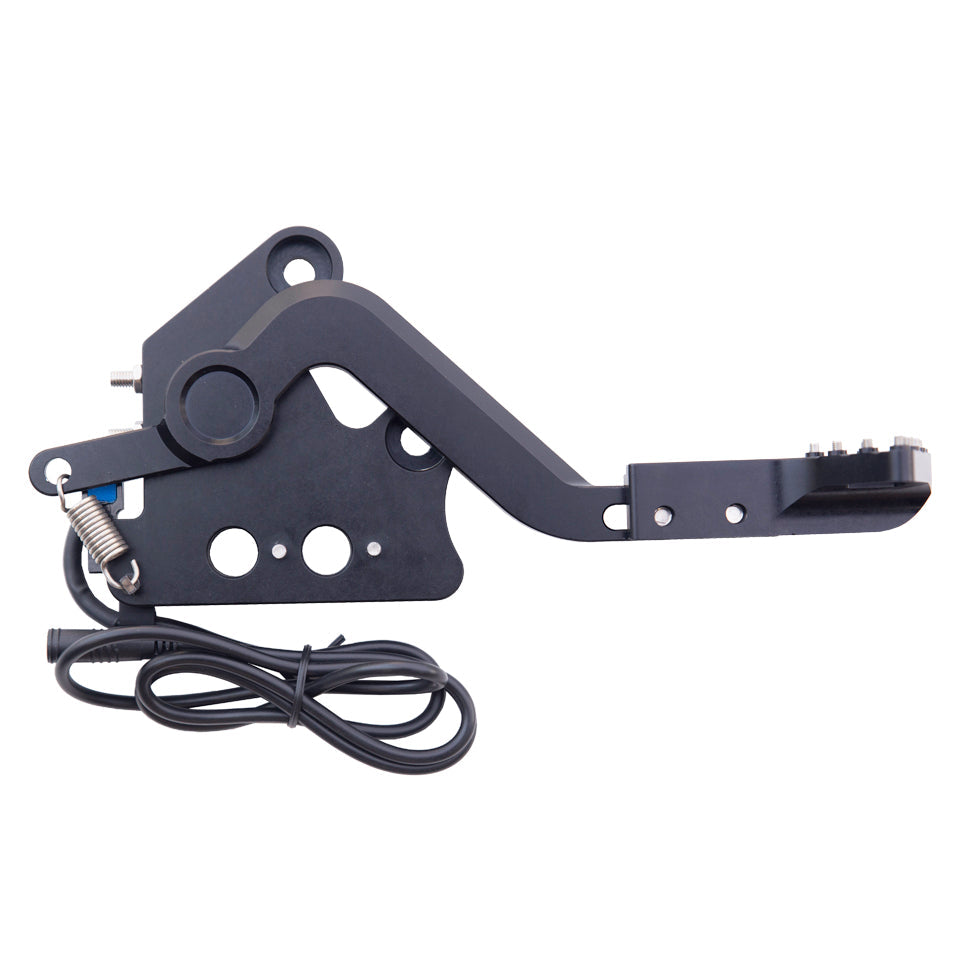

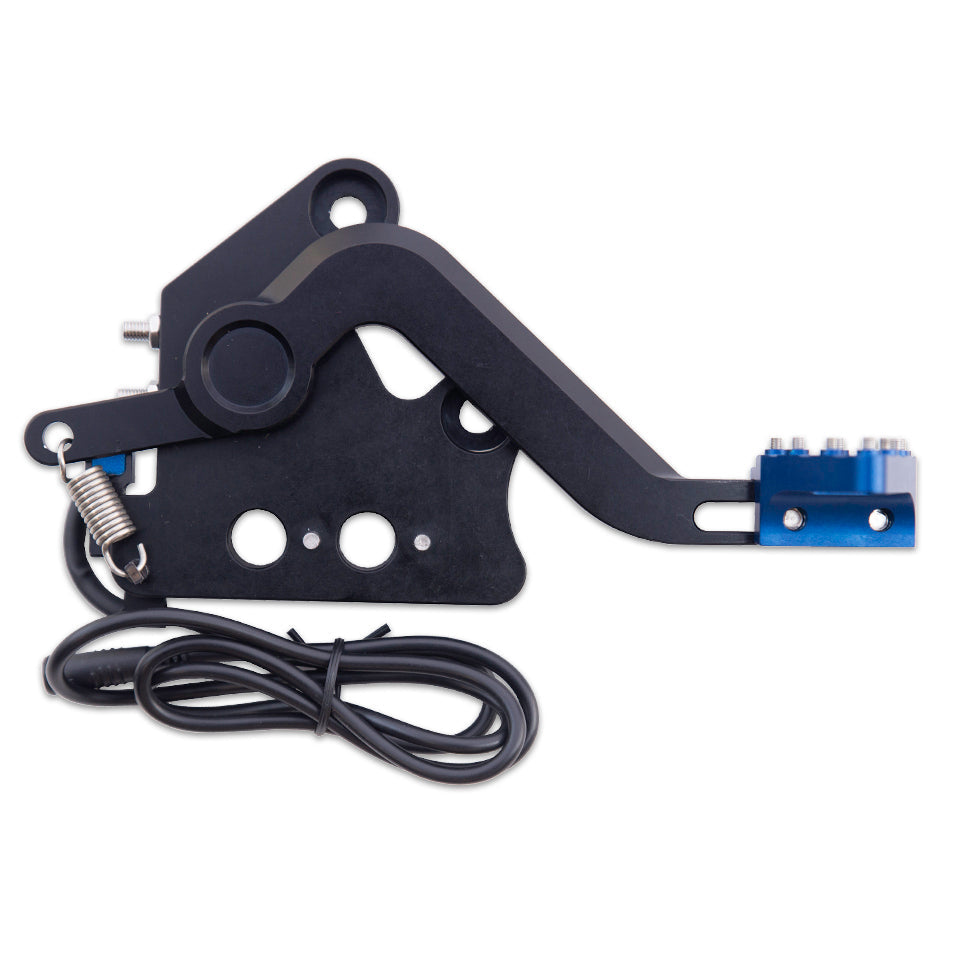

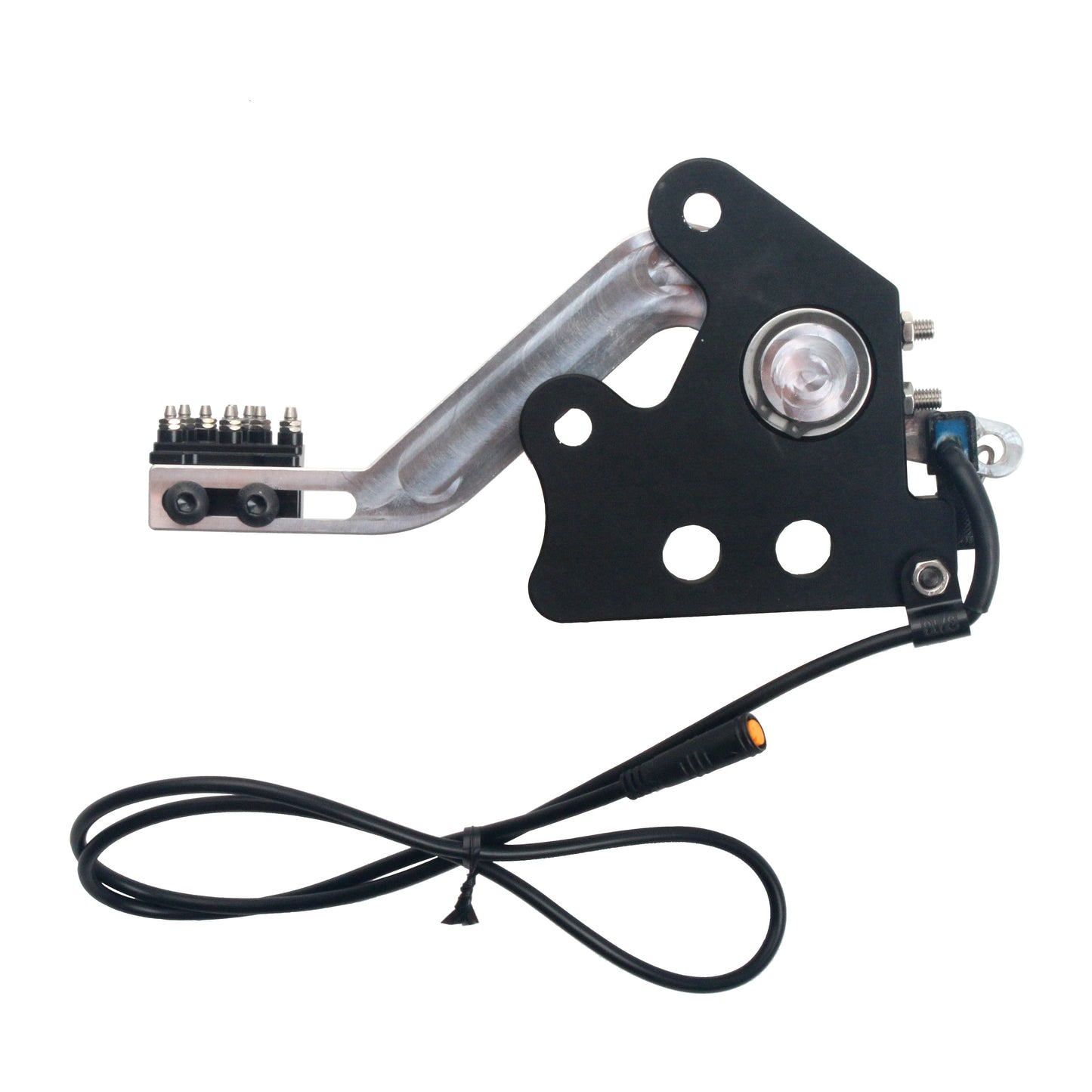

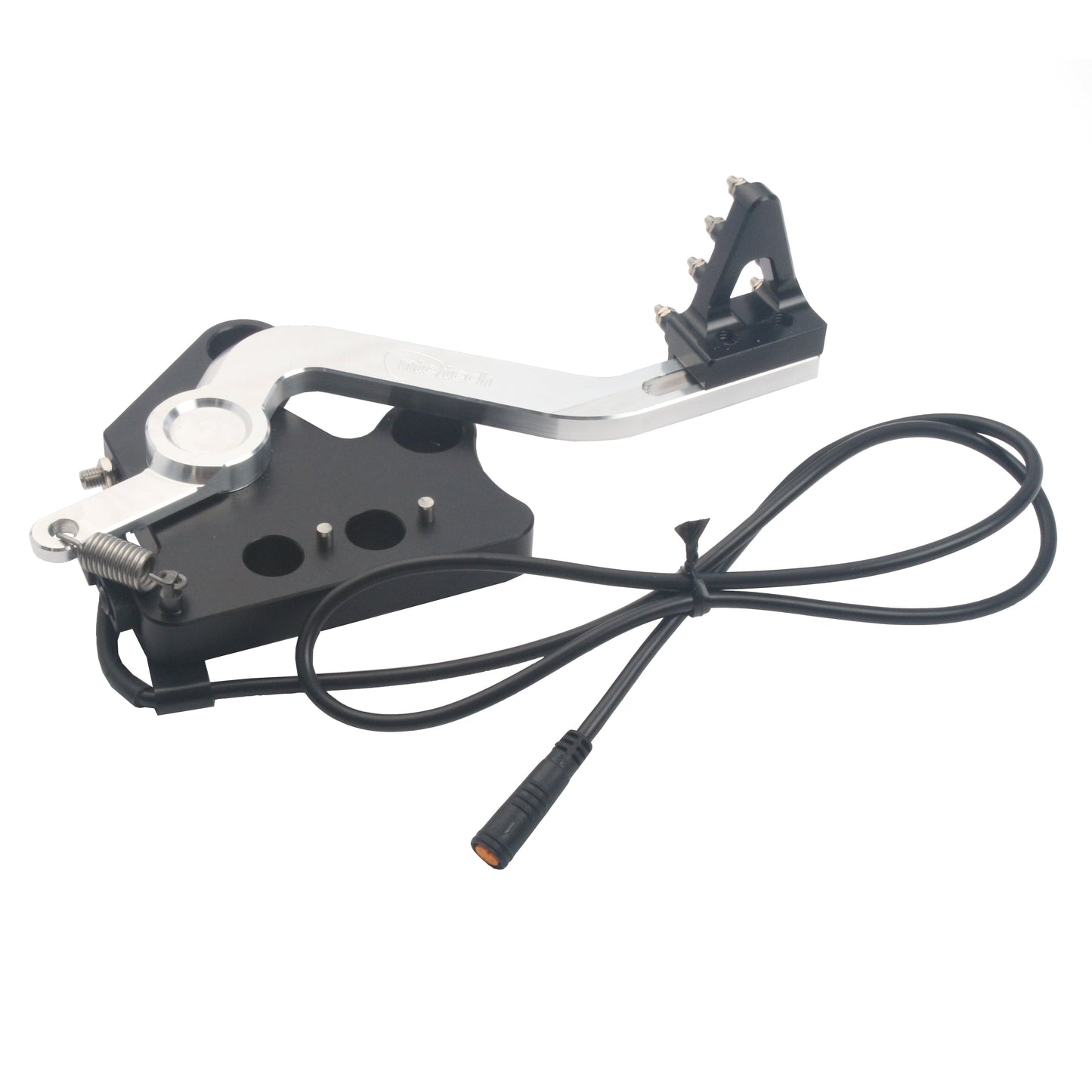

Sur-Ron Regen Rear Foot Brake Pedal

 Details

Custom rear regen / electronic pedal for Sur Ron.   This electronic foot pedal can be used with all controllers that have an analog regen braking input. Please see the connector list below to purchase the compatible connector.

Fully adjustable pedal upper and lower travel limits.  Due to clearance issues, the front-most peg position can not be used.

 Pedal outputs 0.15 to 3.7v single for the pedal position.   This kit is not compatible with the stock controller.  The output connector is 3 pins female Higo connector (same as Bafang 3 pin throttle). Please contact us for the other connector options.

Controller Cables

Find your controller type below to purchase the needed cable to make your regen brake compatible with your controller type.

• Bafang / Higo: Our Regen brake comes with Bafang / Hingo as our standard cable. No additional cable is needed. This cable is compatible with the Green Line Engineering and E.R.T Controller.
• Nucular: https://www.ntcdesigns.com/products/bafang-connector-to-nucular-connector-cable
• ASI: https://www.ntcdesigns.com/products/harness-cable
• Sintech: https://www.ntcdesigns.com/products/bafang-connector-to-4-pin-jwf-female-plug
