RAWRR Mantis Mini R / R17

$2,499.00
$2,499.00
$2,499.00

Local Sales Only. Contact us for more details.

Configuration: Mini R

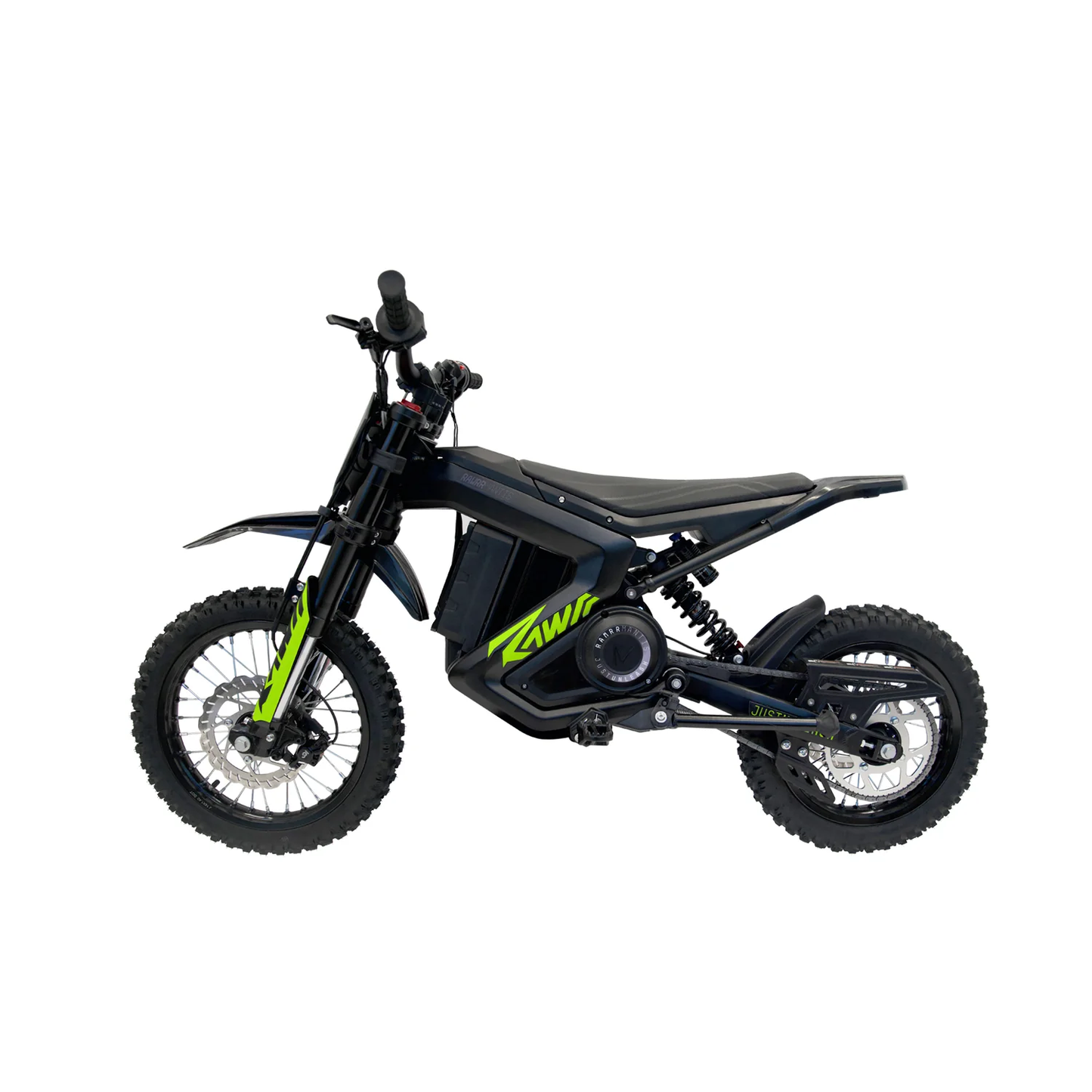

RAWRR Mantis Mini R / R17
RAWRR Mantis Mini R / R17
  • Description

New smaller Mantis form factor, the Mantis Mini R, our smallest model designed for young riders who want a more serious bike. It features 12-inch rear wheel, 14-inch front wheel, multiple power modes, and Mantis Mini R17 with 14 inch rear wheel and 17 inch front wheel. 72 Volt Battery and up to 46MPH top speed.





Performance


Top Speed
46 MPH

Acceleration
0-19mph: 1.8s | 0-31MPH: 3.6s | 0-50MPH: 10s

Range
31 Miles

Max Torque
210 NM

Max Motor Power
4500W
Regular Motor Power
2000W

Climbing Ability
45 Degrees

Safety


Motor and Controller IP
IP66
Battery and Wire Connectors IP
IP55

Kill Switch
Yes

Chain Cover
Yes

Magnetic Leash Kill switch
Yes

Kickstand Sensor
yes

Brake Sensors
Yes

Electrical


Display Type
LCD

Battery Type
Lithium Ion
Battery Cap
72V 1440WH

Battery Cycle Life
800 Cycles

Charger input voltage
AC110/220V
Charging Time
3-6 hours

Controller Type
FOC Sine Wave
Drive Modes
1/2/3

Mechanical


Brake Type
2-Piston Hydraulic Disc Brakes

Front Fork Travel Distance
110 MM

Motor Type
Brushless
Motor Cooling Method
Air-Cooled

Power Delivery
direct Chain Driven

Motor Max Operating Temperature
85 degrees celcius

Frame
6061 Aluminum Alloy

Measurements Mini R


Height
37.8 in

Length
62.2 in

Width
26.42 in

Max Clearance
9.45 in

Wheelbase
42.24 in

Seat Height
28.9 in

Front Tire Size
60-100-14

Rear Tire Size
2.75/12

Front Brake Rotor Size
203mm

Rear Brake rotor size
203mm

Vehicle Weight with Battery
111 lbs

Max Payload
165 lbs

Measurements Mini R17


Height
38.98 in

Length
64.57 in

Width
26.42 in

Max clearance
10.63 in

Wheelbase
42.56 in

Seat Height
30In

Front Tire Size
70-100/17

Rear Tire Size
3/14

Front Brake Rotor Size
203mm

Rear Brake rotor size
203mm

Vehicle Weight with Battery
111 lbs

Max Payload
165 lbs
