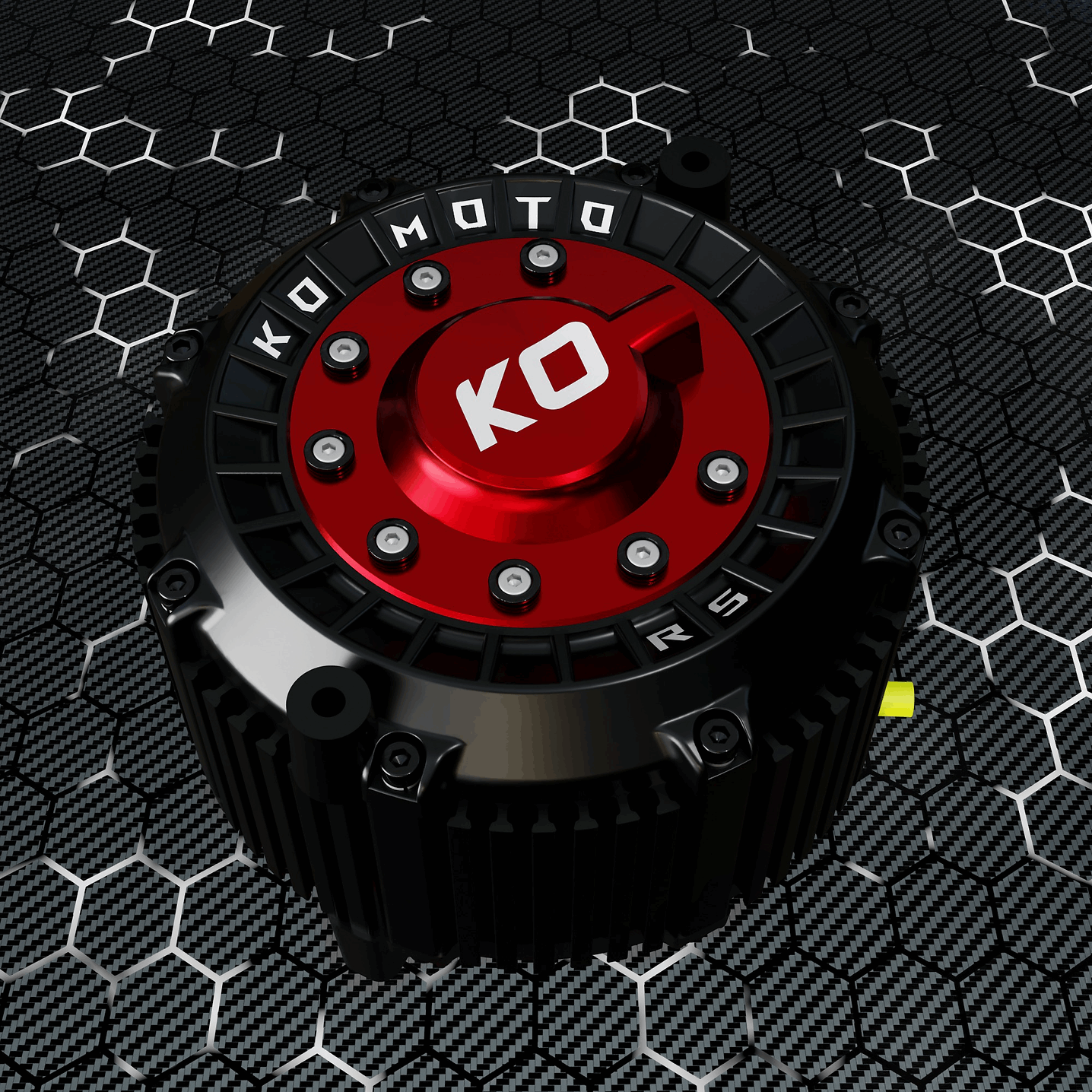

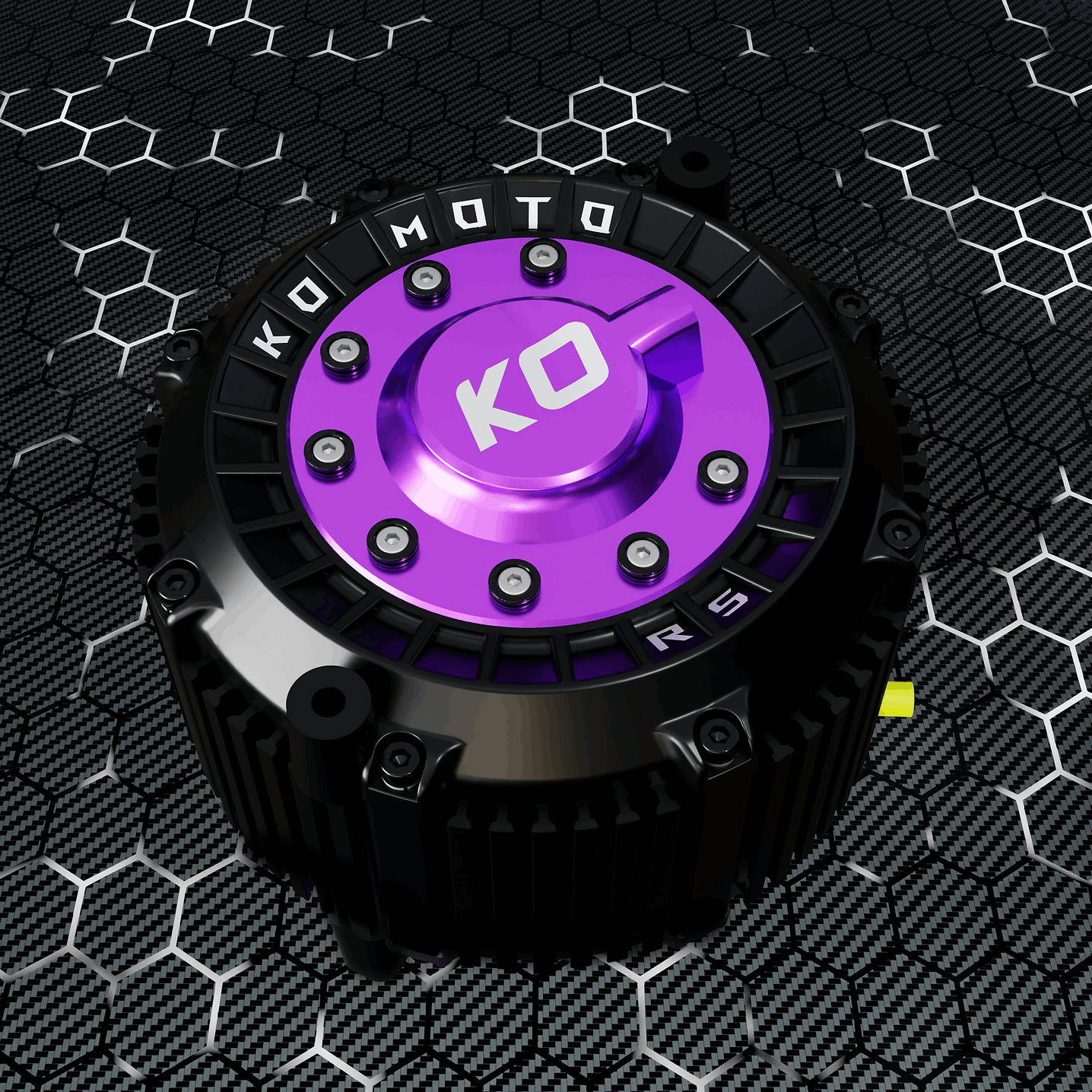

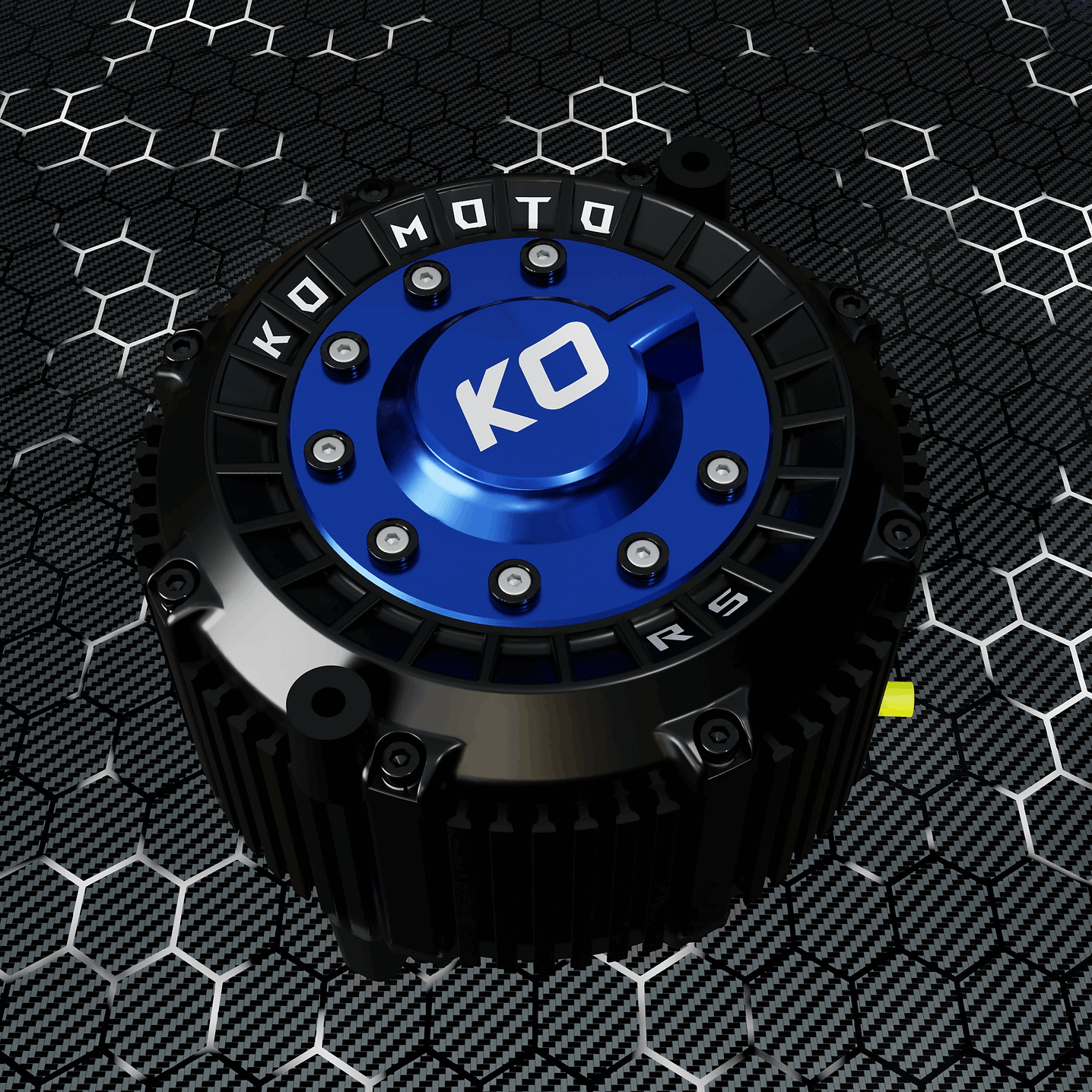

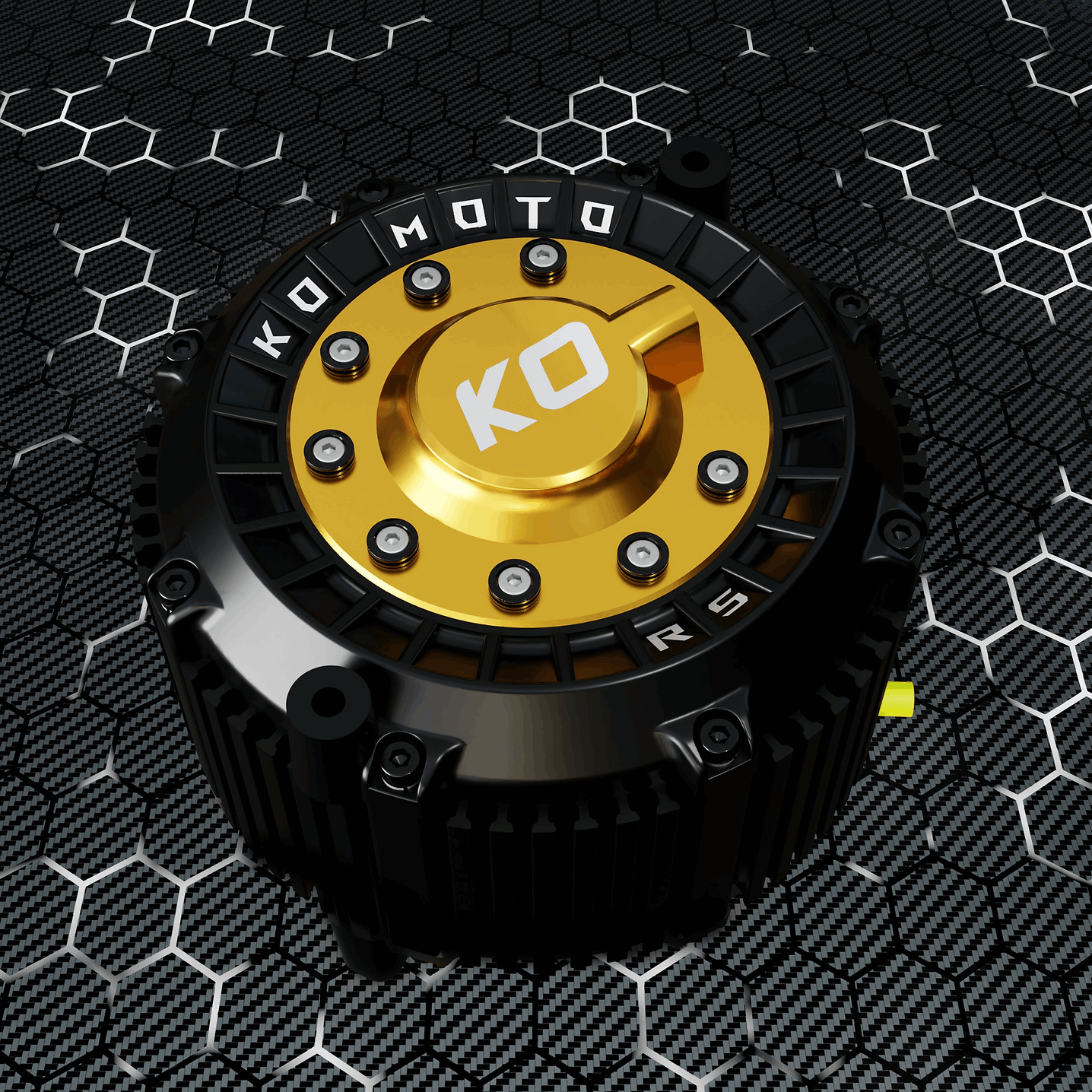

KO MOTO RS Surron Upgrade Motor

MOTOR CASING FEATURES

• DIRECT DROP IN REPLACEMENT FOR SUR-RON AND SEGWAY X260.

• MOTORWEIGHT (INCLUDING WIRES) - 10KG,

• MOTORCYCLE GRADE ANODIZED FINISH FOR MAXIMUM DURABILITY AND HEAT DISPERSION (NOT POWDER COATED).

• 7075 AIRCRAFT GRADE BILLET MACHINED END CAPS AND SENSOR CAP.

• STAINLESS STEEL WATER PROOF PHASE AND SENSOR WIRE GLANDS.

​

INTERNAL MOTOR FEATURES​

• INTERNAL MAGNET MOTOR (IPM) KO DESIGNED MANUFACTURED ROTOR / STATOR.

• STATOR DIMENSIONS - 160mm X 53mm.

• WORKING VOLTAGE - 48V-100V.

• COLD ROLLED SAE 1045 STEEL SHAFT

• CUSTOM KO DESIGNED AND PATENTED ROTOR AND HEAT SINK DESIGN ALLOWS HEATSOAK DISSIPATION ON THE ENDS OF THE STATOR.

• KO DESIGNED AND PATENTED INTERNALS PRESSURE EQUALIZATION SYSTEM COMPATIBLE.

• KO DESIGNED AND PATENTED CRYO COLD AIR INJECTION SYSTEM COMPATIBLE.

• KO DESIGNED AND MANUFACTURED CRYO ROTOR/ STATOR ANTI CORROSION COATING.

• INDUSTRY LEADING SKF BEARING AND SEALS (OR EQUIVALENT)FOR THE LOWEST ROLLING RESISTANCE AND EFFICIENCY.

• JAPANESE SOURCED 0.35 NIPPON STEEL STATOR / ROTOR LAMINATED.

• INDUSTRY LEADING 1.5mm AIR GAP.

• INDUSTRY LEADING 150°C / 302F SH50 NEO MAGNETS.

• HAND WOUND 220°C HIGH TEMP COPPER WINDINGS.

​

MOTOR OPERATING SPECIFICATION

• POWER -  35KW  (BASED ON THE MOTOR RATING, YOUR BATTERY WILL DETERMINE THE POWER PRODUCED BY THE MOTOR)

• MAX TORQUE @60V - 52NM

• MAX STABLE ROTOR RPM - 12,000RPM

• MAX EFFICIENCY 97%

Fitment

Sur Ron LBX

Segway X160

Segway X260
