Bonnell 775 SE

$4,295.00
$4,295.00
$4,295.00

Plus freight, tax and assembly.

In store sale only. No shipping available.

Color: Gray
Size: Medium

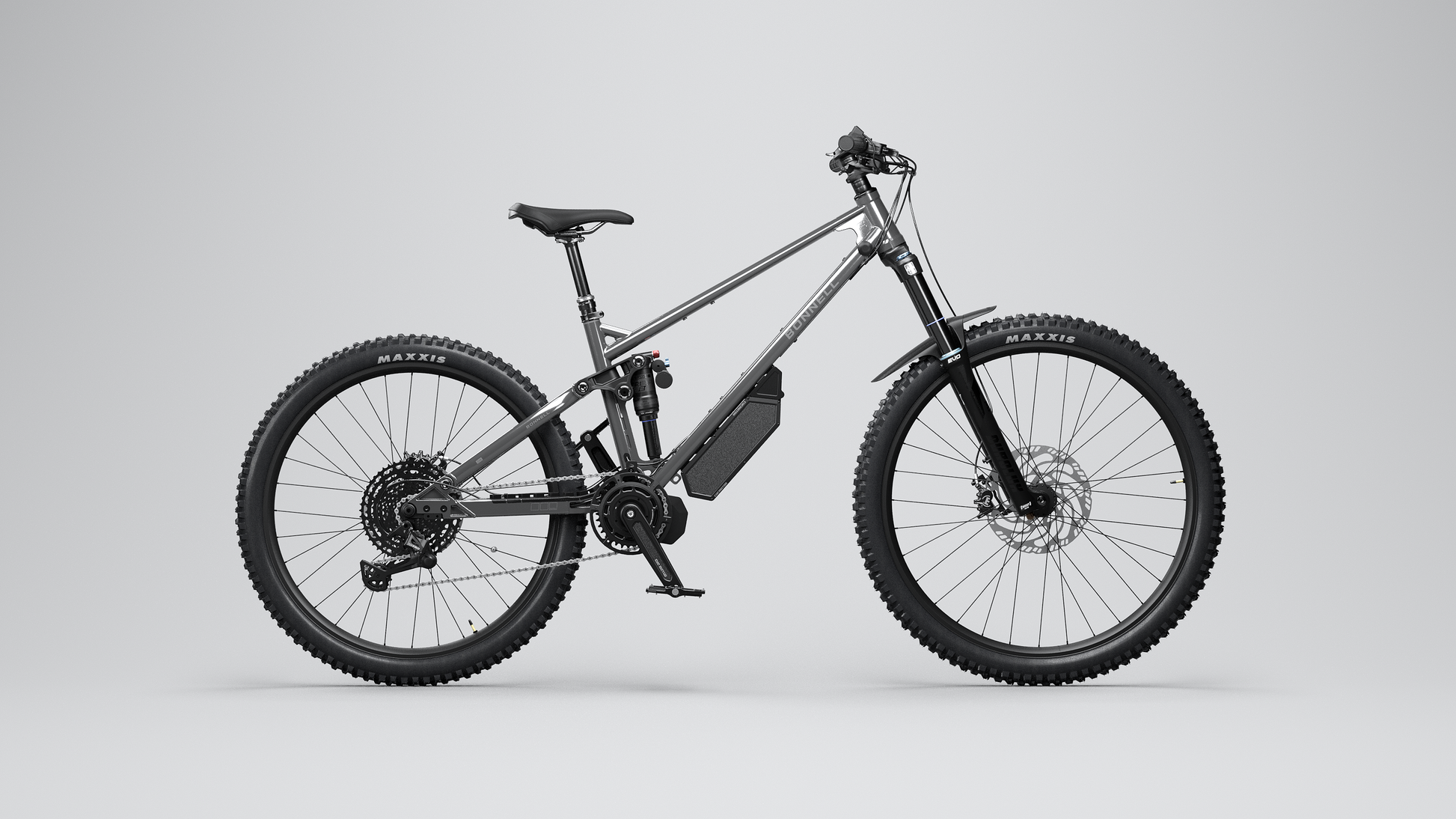

Bonnell 775 SE
Bonnell 775 SE
  • Description
  • Disclaimer



All-Access Adventure

The 775 SE isn’t just a bike, it’s a shapeshifter. Built for every kind of rider—from first-timers to full-on trail junkies—it combines modern geometry with modular design and progressive suspension to handle any terrain you throw at it.

Overview

  • Intended use: Enduro
  • Front travel: 160
  • Rear travel: 150
  • Weight: 55lbs [25kgs]
  • Range: 18-44 mi [30-70 km]

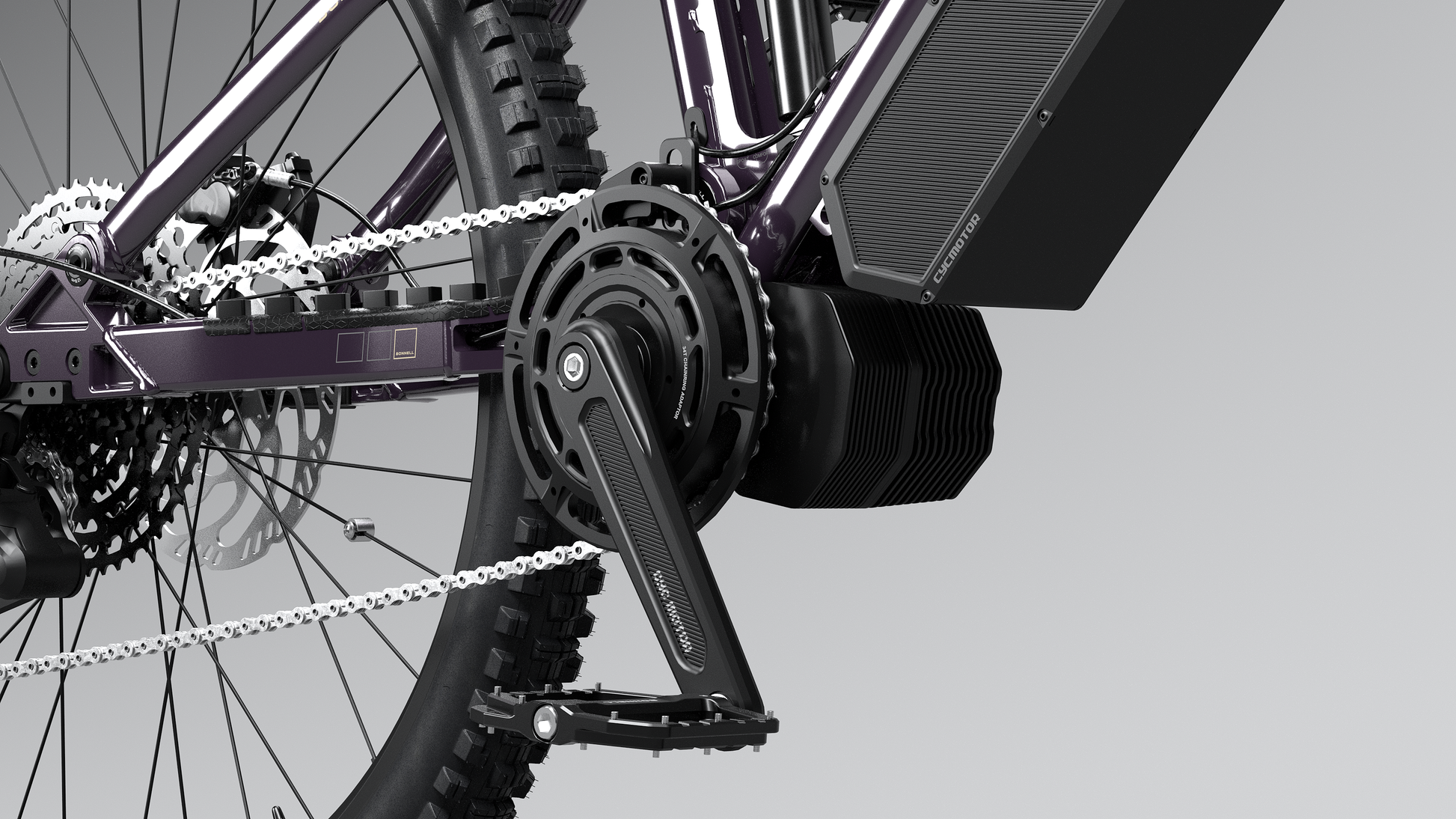

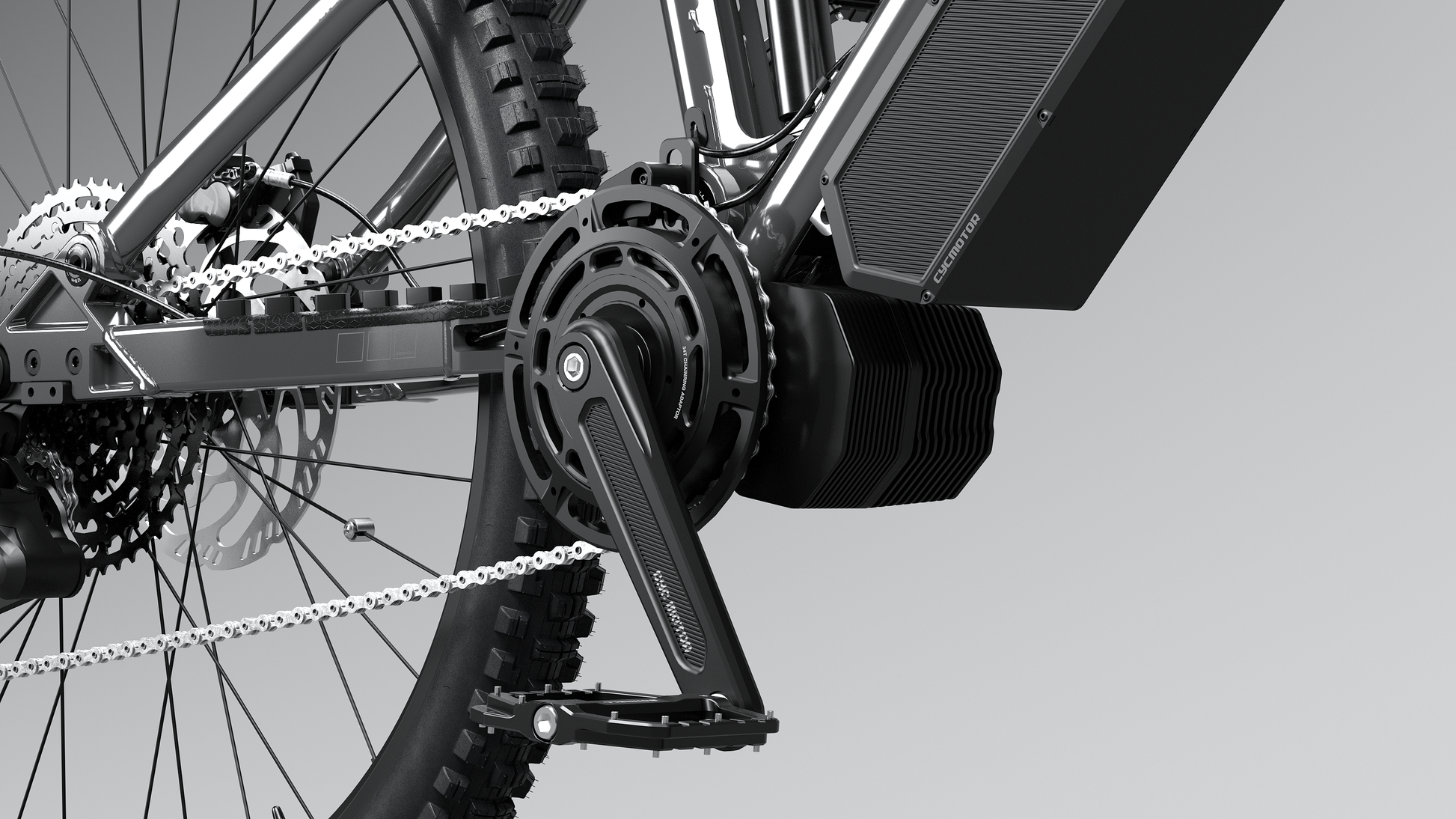

Compact Design, High Performance: The 775 SE Motor

Photon motor packs 1,200 watts of peak power and 110 Nm of torque, delivering outstanding versatility and performance. Built to Class 2 compliance, the throttle offers effortless cruising up to 20 mph (25 km/h). Riders can also switch to Class 3 mode in the Bonnell Riding app, disabling the throttle and increasing the top assisted speed to 28 mph (45 km/h). With Pedal Assist (PAS), you get a seamless mix of motor and pedal power—ready to take on any trail and define your own epic adventure.





Elevate Your Ride: Intuition Display

Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.

Power Your Ride: The SE Batteries

The A-series quick-connect battery comes standard on the 775 SE in a 520Wh configuration, with the option to upgrade to a higher-capacity 780Wh version to suit your riding needs. Designed to keep you powered for longer rides, it offers a range of up to 43 miles (70 km). Whether you stick with the standard 520Wh or opt for the 780Wh upgrade, both deliver exceptional performance and range for your adventures.

Engineered for Durability: The 775 Frame

The 775 SE boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Durolux 36x/38x fork and TriAir 3CR shock, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.

All Components



General

Frame

Platform
Progressive single-pivot, linkage-driven suspension design
Rear Travel
150mm
Front Triangle
4130 chromoly front triangle, twin downtube design, fully ED-coated
Chainstay / Dropouts
6061 aluminum chainstay, forged yoke, adjustable forged dropouts with 203mm Post Mount brake interface
Derailleur Hanger
UDH derailleur hanger
Seatstays
6061 aluminum seatstays with removable bridge and forged bearing eyelets
Rocker Arm
Forged rocker arm
Bearings
Full complement stainless steel sealed bearings, marine grease
Pivot Sealing
Double sealed suspension pivot system for maximum durability
Dual Crown Rating
Dual crown fork rated up to 615mm axle-to-crown
Finish
Durable powder-coated finish

Rear Suspension

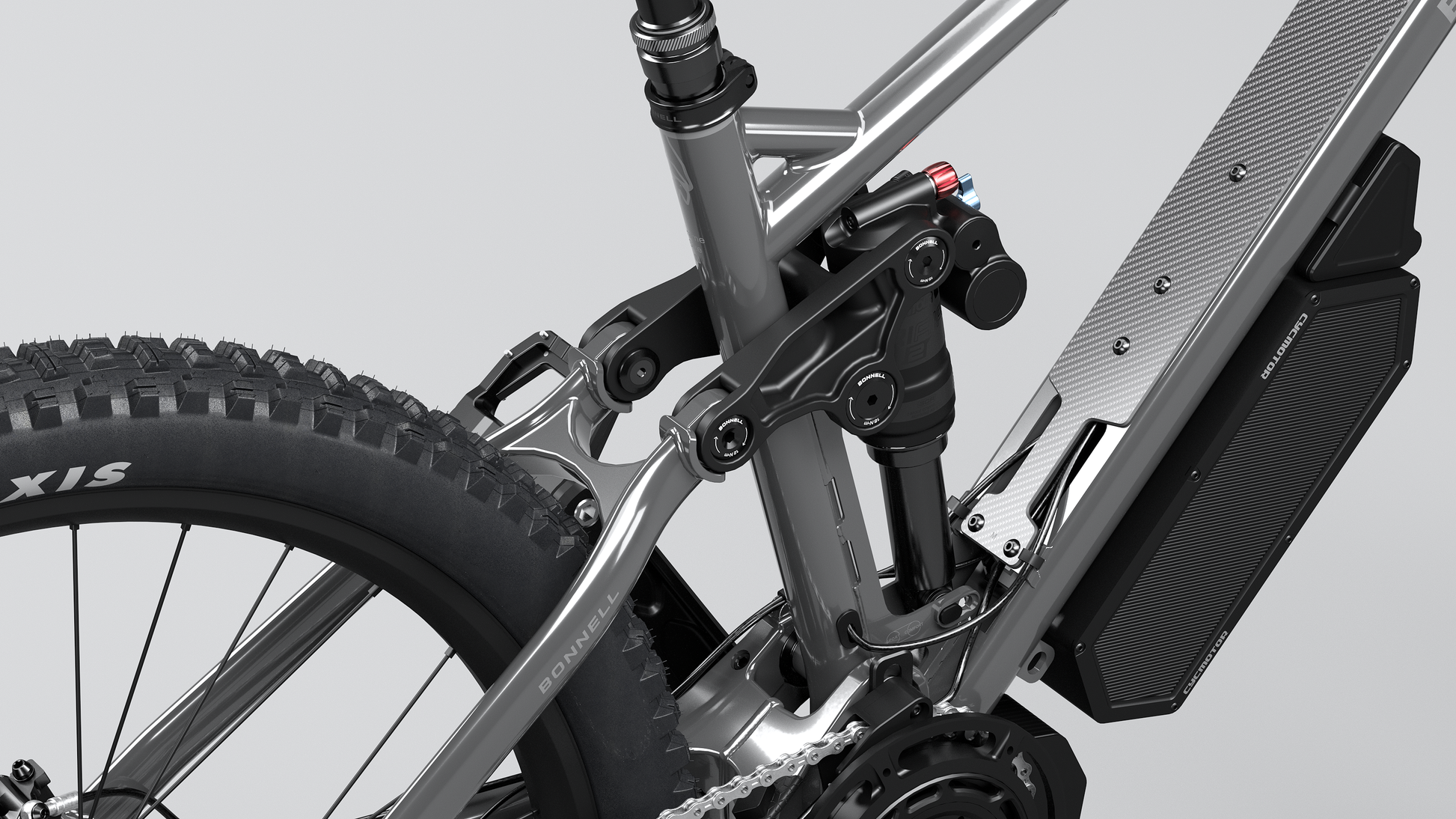

Shock
Suntour TriAir 3CR — Bonnell AM custom tune
Adjustments
3-position compression lever and rebound adjuster
Mount / Size
Trunnion 205 x 60mm, 25 x 8mm lower shock mount

Headset

Type
Tapered: ZS44 (top) / ZS56 (bottom), sealed bearings

Fork

Model
S/M: Suntour Durolux 36X RC+
L/XL: Suntour Durolux 38X RC+
Rating / Steerer
E-bike rated, tapered 1 1/8"–1.5"
Wheel Size
29"
Travel
160mm
Offset
40mm
Axle
Boost 15 x 110mm with tooled axle
Fender
Short integrated fender included
E-System

Power & Electronics

Drive Unit
CYC X1 Pro
Chainring
CYC steel narrow-wide 38T
Bashguard
CYC heavy-duty 6061-T6 aluminum MTB bashguard
Battery
CYC A65 Series 1300Wh (approx. 17 lb / 7.6 kg)
Charger
CYC 5A charger
Display
CYC Intuition integrated smart display
Throttle
Lekkie Pacemaker full-twist throttle
Drivetrain

Drivetrain

Rear Derailleur
Tektro RD-M5100, 10-speed, with clutch
Shifter
Tektro SL-M5000-10R, 10-speed
Rear Cogs
Microshift 10-speed e-bike cassette CS-EH104, 11–48T
Chain
KMC e10Sport, EPT (anti-rust)
Crank
CYC forged, 165mm
Chainguide
BONNELL guide, compatible with 34–38T chainrings
Brakes

Brakes

Brakes
Magura MT5, 4-piston, MDR-P floating rotors (220mm front / 203mm rear).
Brake Levers
2-finger lightweight aluminum lever blade. Flip-flop design allows for standard or moto-style setup.
Adjustment

Adjustments

Chainstay Length
Adjustable chainstay length: 440mm or 452mm
Shock Mount Positions
Two shock positions: Comfort and Sport modes
Wheels

Wheels & Tires

Front Hub
Alexrims 20 x 110mm Boost, 36H e-bike hub, sandblasted finish
Rear Hub

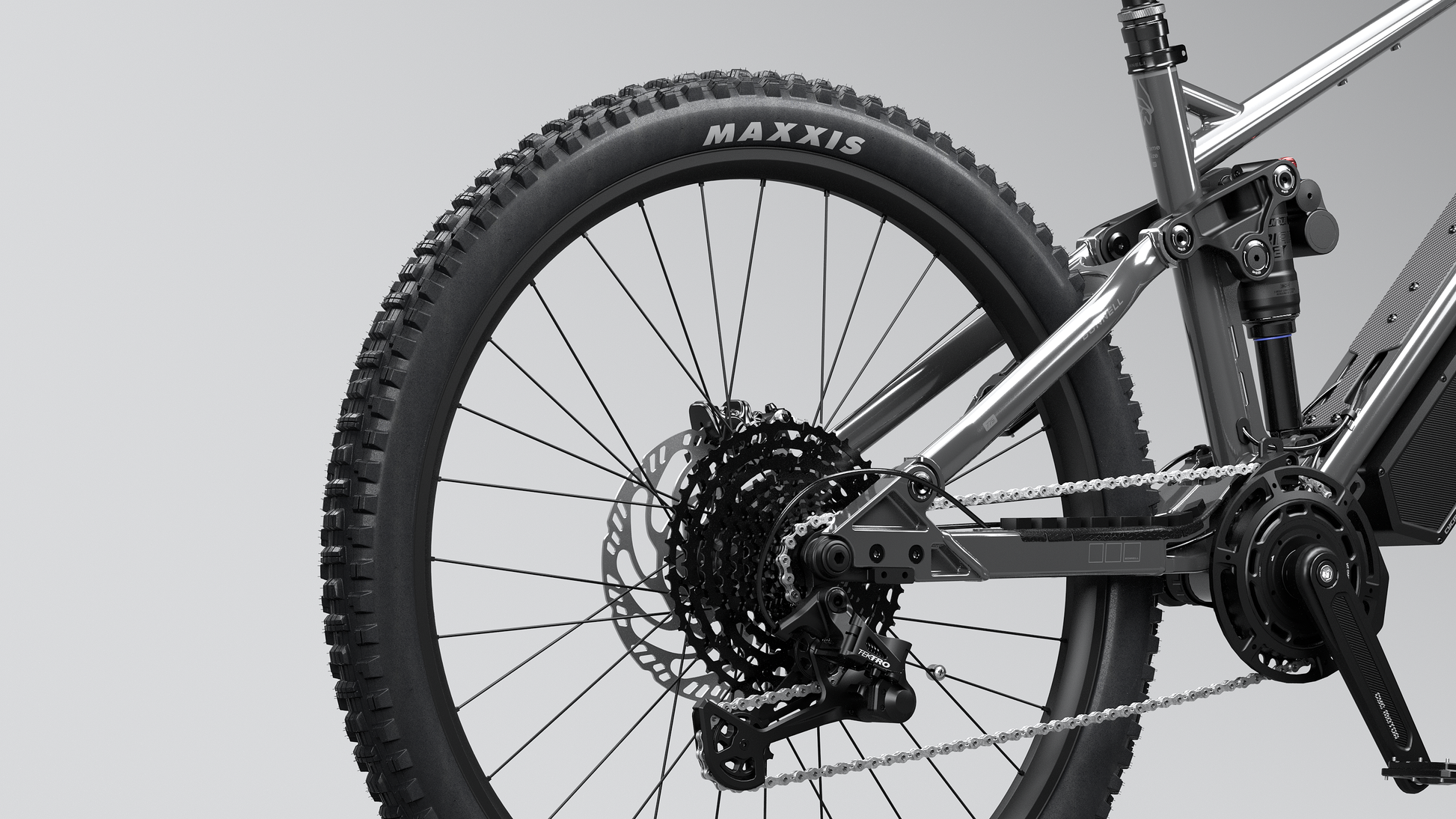

BONNELL single-speed sprag clutch hub, 12 x 148mm Boost, 36H. Symmetrical spoke flange design for maximum wheel strength. 6-bolt mount for rear sprocket. Sandblasted finish
Spokes (Rear)
Reinforced rear wheel with thicker 13G stainless steel spokes, updated lacing, and upgraded nipples
Rims
Alexrims EMC 30, e-bike reinforced, 30mm internal width, tubeless-ready, 36H, sandblasted finish. Upgraded front & rear rims for added durability
Brake Type
Disc, 6-bolt
Tire Size
2.5" front and rear
Wheel Size
29" front / 27.5" rear (mullet)
Tires
Front: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5"
Rear: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5"
Tubes
Maxxis Welter Weight, 2.5"
Rear Flat Protection (Insert)
Tannus Armour insert pre-installed in the rear wheel (flat resistance + rim protection from hard hits)
Components

Cockpit & Seat

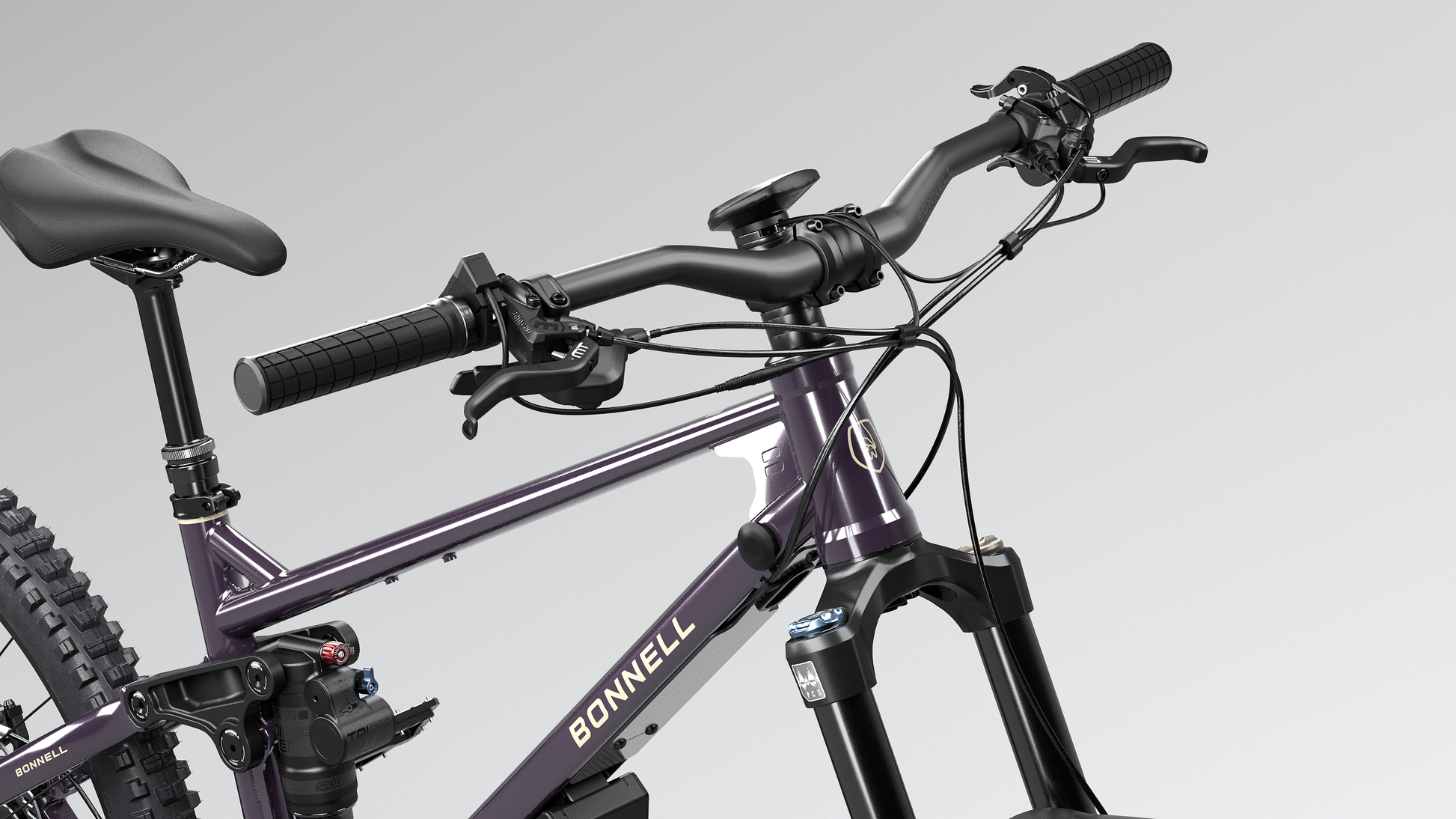

Handlebar

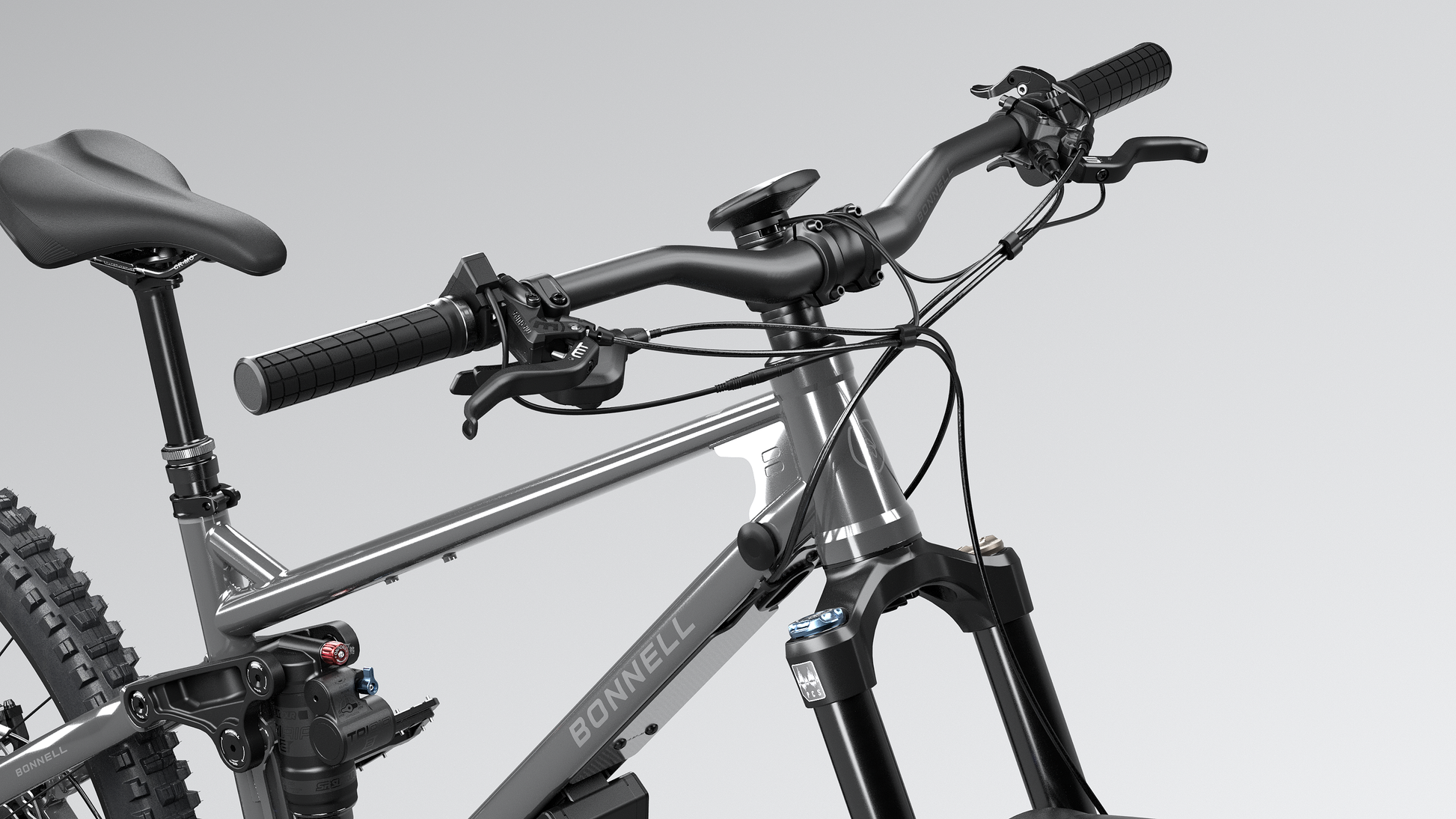

Bonnell 780mm wide, 31.8mm clamp, 35mm rise (S/M) / 50mm rise (L/XL), 9° backsweep, black stealth finish
Stem
Bonnell forged stem, 45mm length, 31.8mm clamp, black stealth finish
Stem Spacers
5 × 5mm spacers included for height adjustment
Grips
Bonnell single clamp, black stealth finish, tacky rubber with ergonomic grippy pattern. Integrated bar plug (closed end). Diameter: 30mm (S/M) / 32mm (L/XL)
Saddle

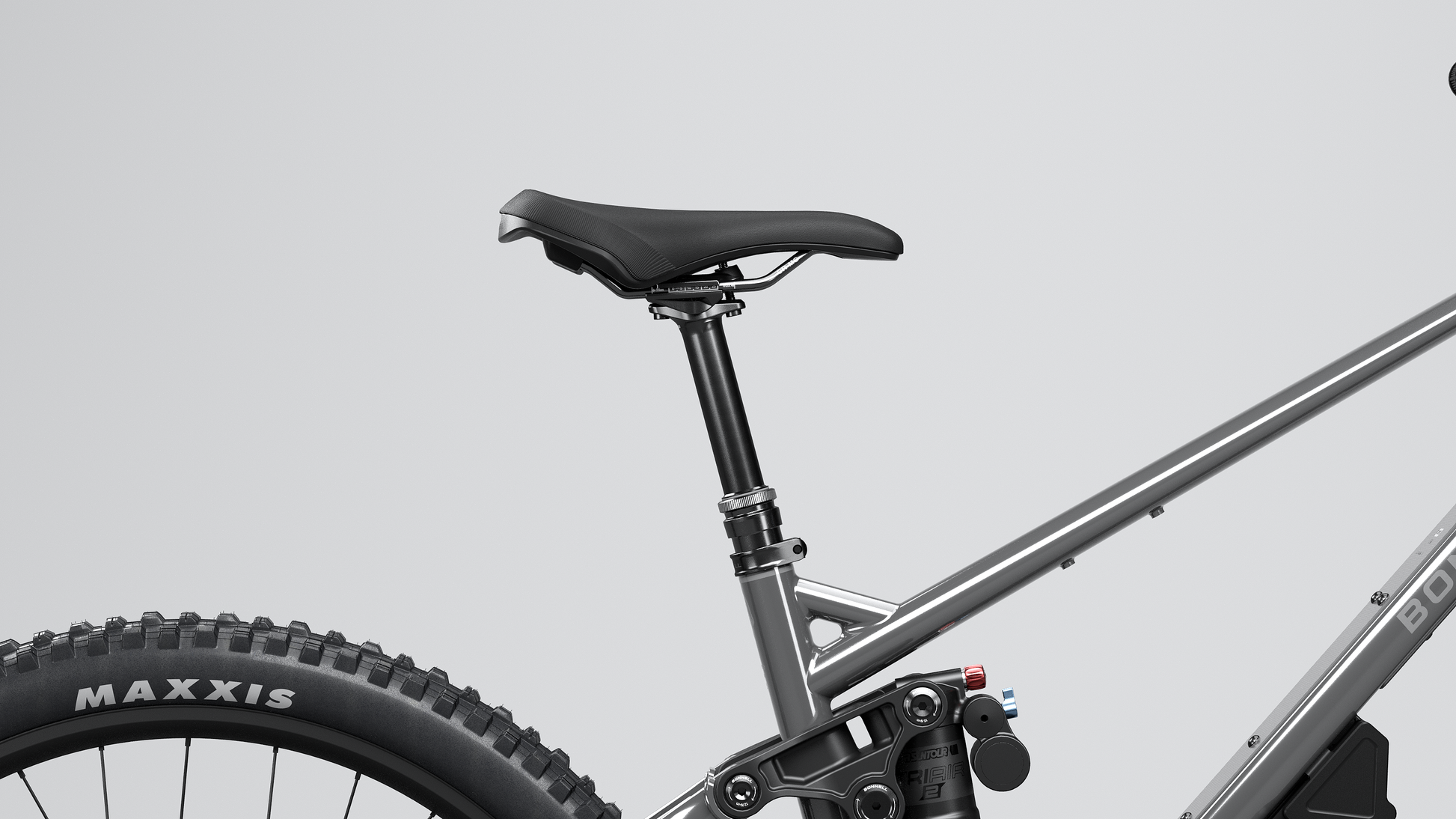

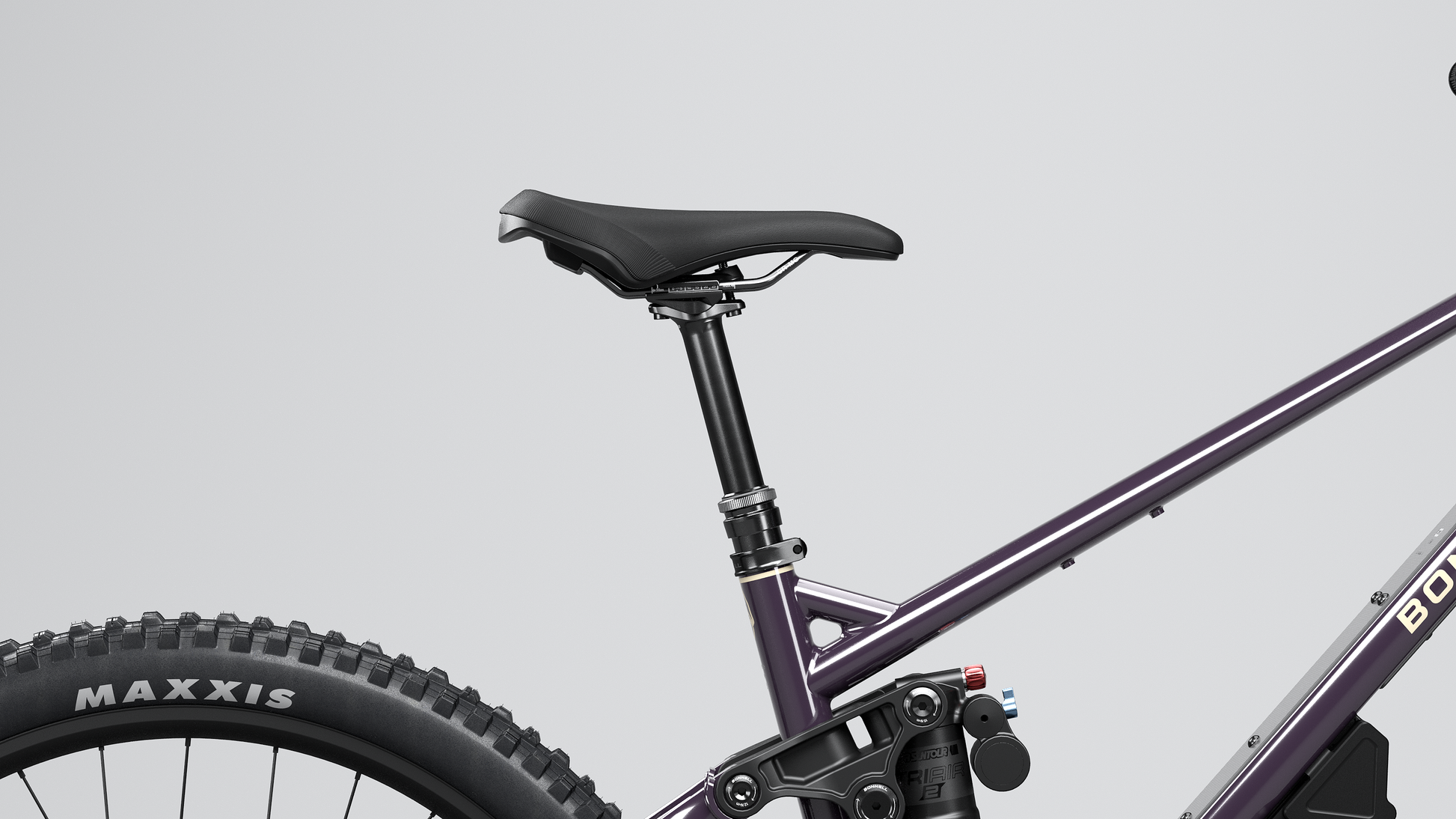

Bonnell by Velo, short-nose saddle with reinforced sides, chromoly rails, “I-carry” transport handle
Seat Clamp
Bonnell 34.9mm single-bolt seat clamp, black stealth finish
Seatpost
Tranz-X 30.9mm dropper post, 2-bolt saddle clamp, 7075 aluminum, hard-anodized. Adjustable travel: 140–170mm (M), 170–200mm (L/XL)
Seatpost Lever
Tranz-X GL 1x lever
Connectivity

Sensors

Wheel Sensor
CYC Bluetooth speed sensor
Extra

Extra

Pedals
Bonnell aluminum flat pedals, 110 × 98mm platform, 17mm thick, sealed bearing + bushing construction
Tubeless Valves
2 tubeless valves included in the box
Multi Tool
Bonnell 13-function multi tool
Suspension
Shock pump
Safety Information

Ingestion Hazard

WARNING
INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause internal chemical burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Ingestion Hazard

WARNING
INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause internal chemical burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

All electric powered motorcycles are intended for Off-Road use only unless specified otherwise. It is important to acknowledge that these off-road vehicles are not to be used on public roads or city streets per federal and local laws and regulation.

As a buyer and rider, it is your responsibility to know the local restrictions and take complete liability for the choices you make and potential ramifications that may arise as a result.
