GeneralFramePlatform
Progressive single-pivot, linkage-driven suspension design.
Rear Travel
170mm
Front Triangle
4130 chromoly front triangle with twin downtube design, fully ED-coated.
Chainstay / Dropouts
6061 aluminum chainstay with forged yoke and adjustable forged dropouts.
Brake Mount
203mm Post Mount brake interface.
Derailleur Hanger
UDH derailleur hanger.
Seatstays
6061 aluminum seatstays with removable bridge and forged bearing eyelets.
Rocker Arm
Forged rocker arm.
Bearings
Full complement stainless, sealed bearings packed with marine grease.
Pivot Sealing
Dual-sealed suspension pivots for maximum durability.
Dual Crown Rating
Dual crown fork rated up to 615mm axle-to-crown.
Finish
Durable powder-coated finish.

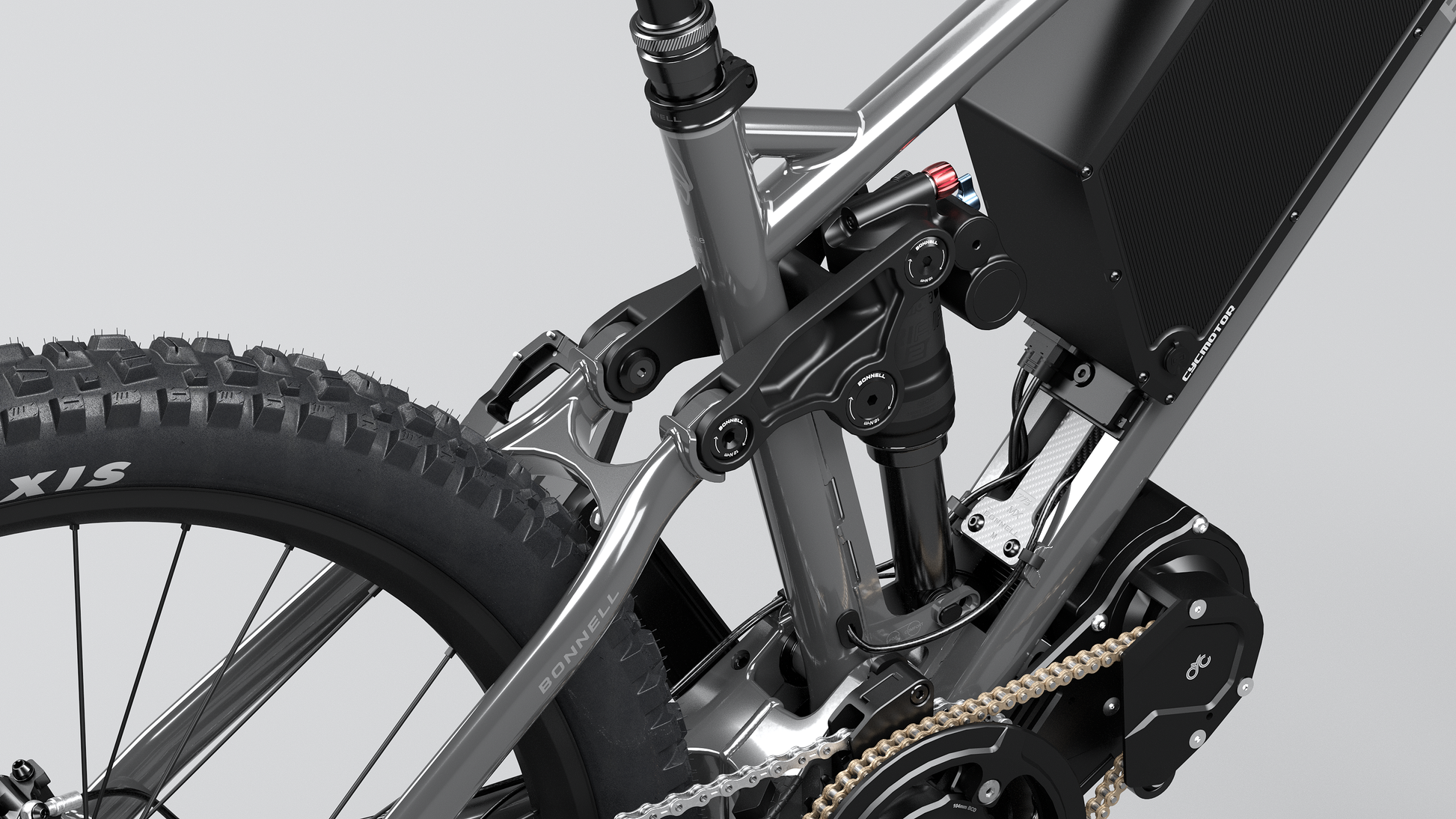

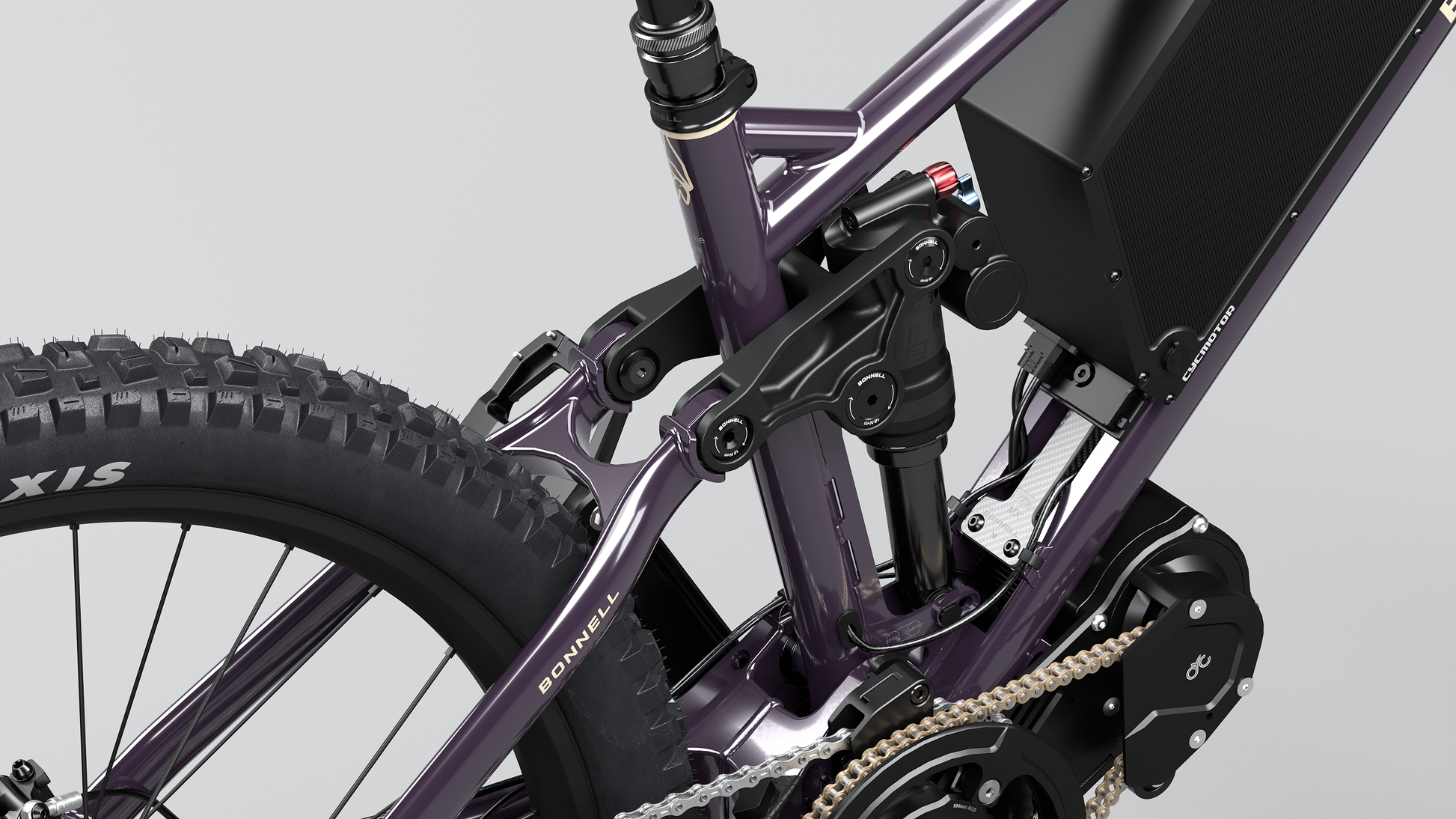

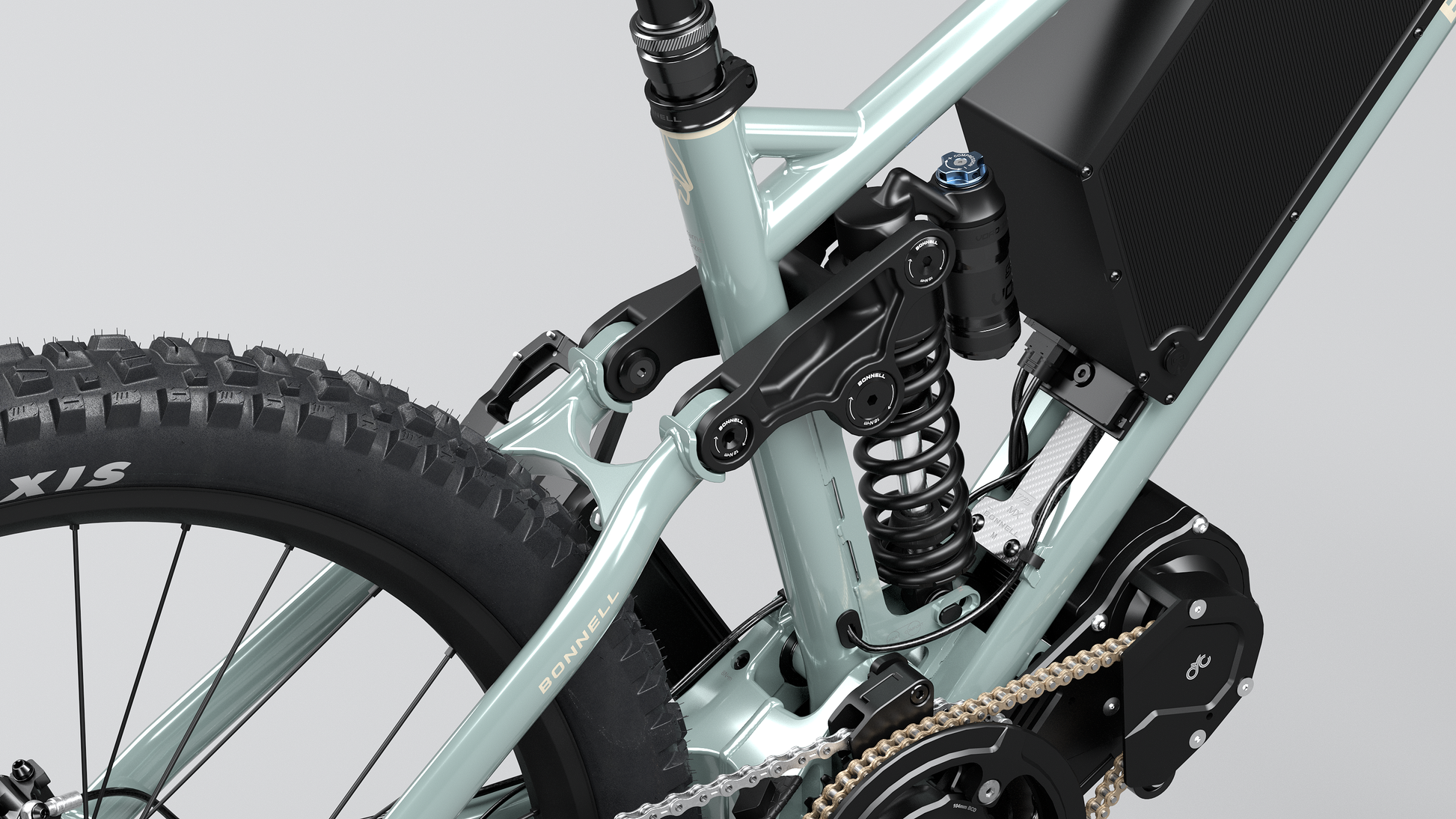

Rear SuspensionShock
Suntour Voro Coil (Trunnion)
Shock Size
205 x 65
Compression
5-position low-speed compression adjustment (blue knob).
Rebound
Rebound adjustment (red knob).
HeadsetType
Tapered: ZS44 (top) / ZS56 (bottom), sealed bearings.
ForkModel
Suntour Rux 38 RC+
Steerer
Tapered 1 1/8"–1.5"
Wheel Size
29"
Travel
200mm
Offset
50mm
Axle
Boost 20 x 110mm thru-axle.
Fender
Short integrated fender included.

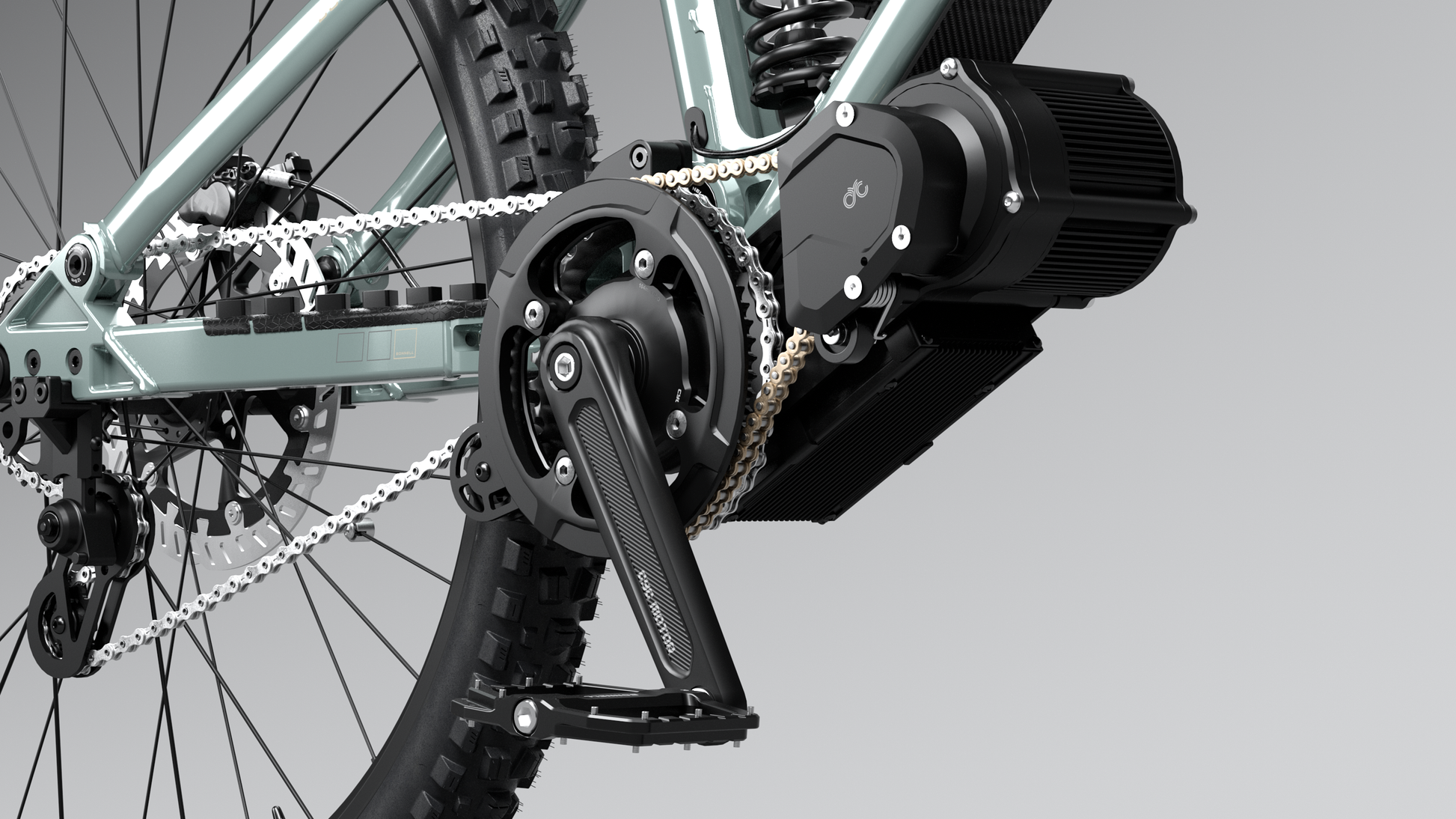

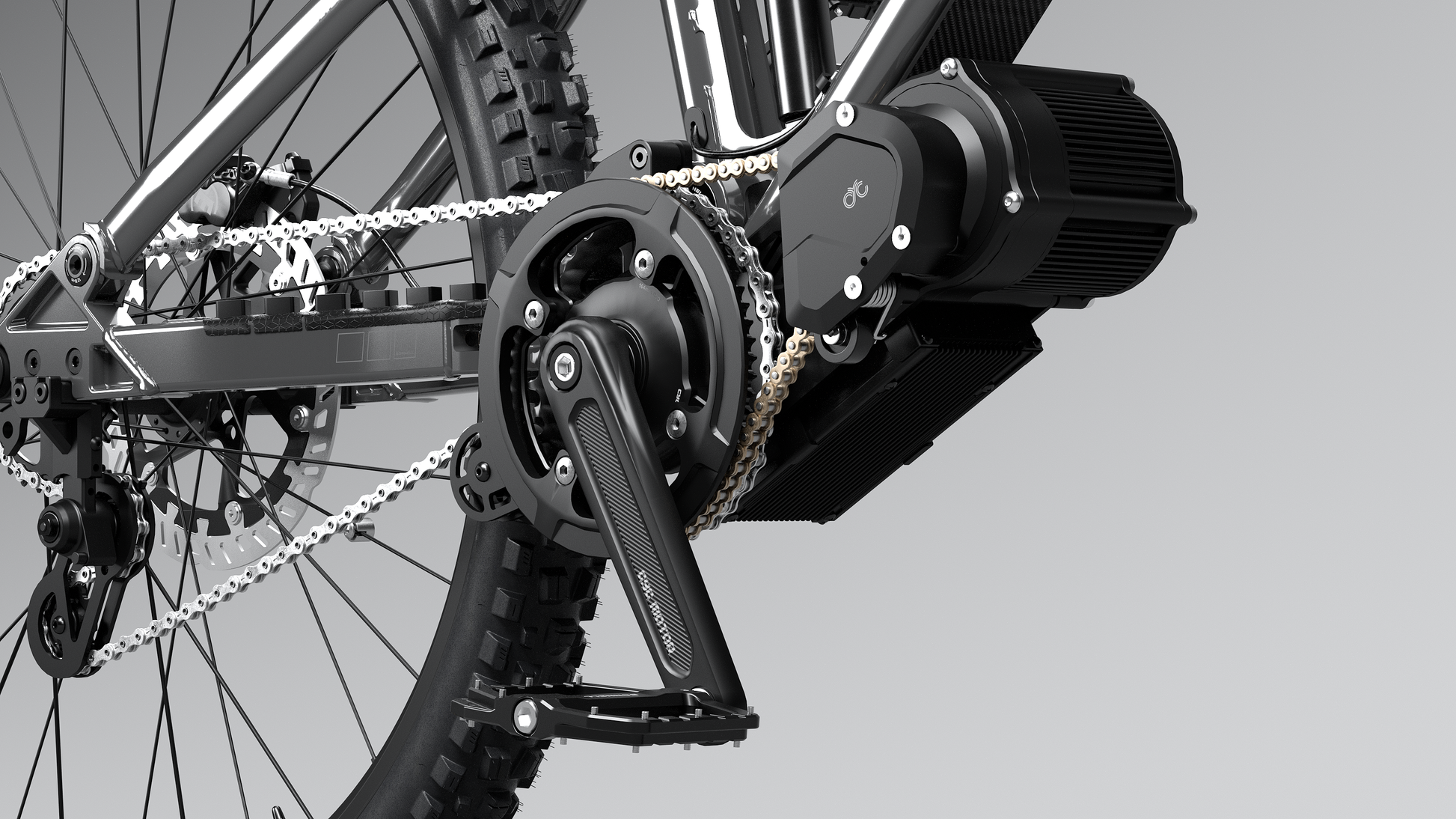

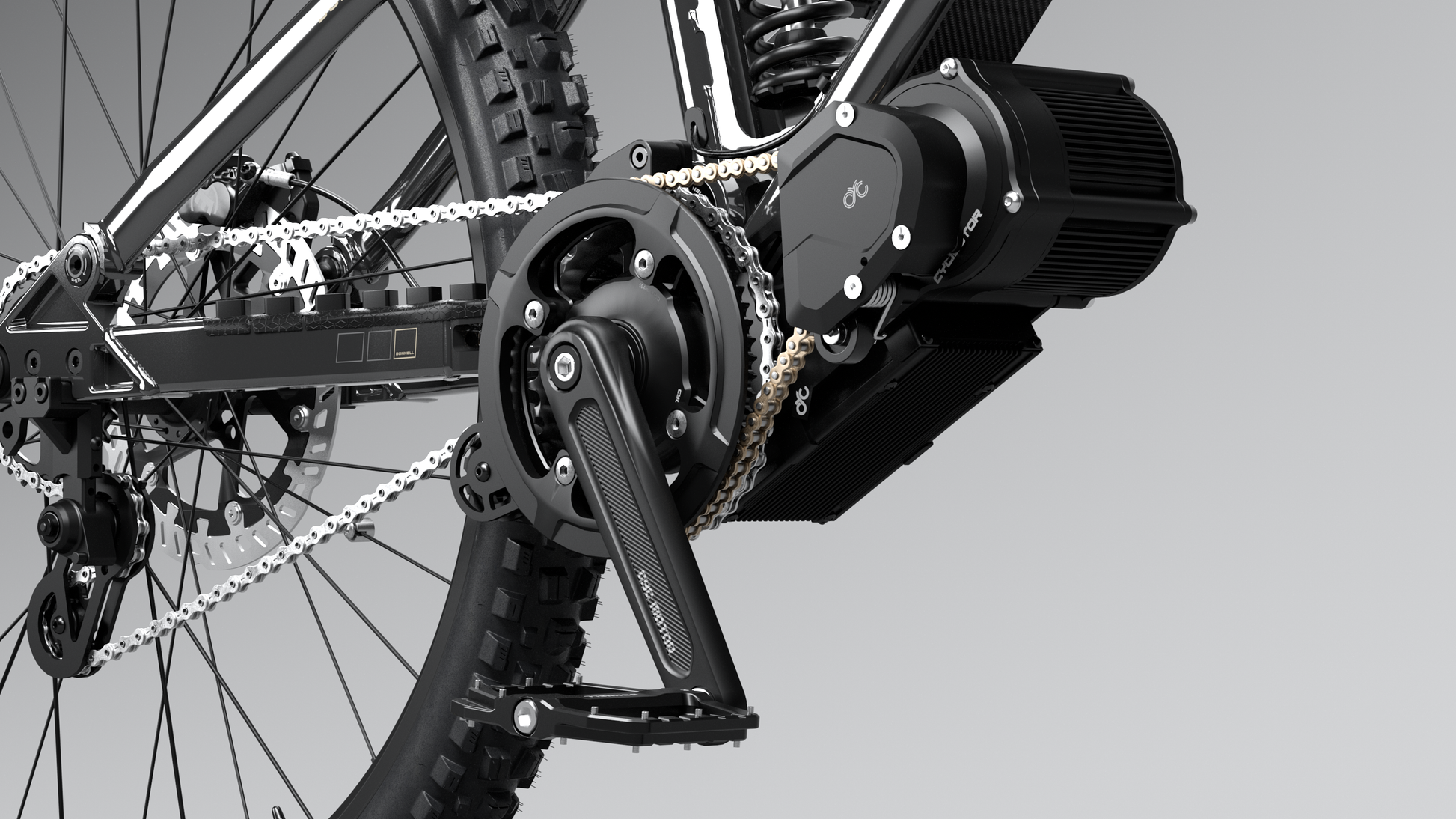

E-SystemPower & ElectronicsDrive Unit
CYC X1 Pro
Chainring
CYC steel narrow-wide 38T
Bashguard
CYC heavy-duty 6061-T6 aluminum MTB bashguard
Battery
CYC A65 Series 1300Wh (approx. 17 lb / 7.6 kg)
Charger
CYC 5A charger
Display
CYC Intuition integrated smart display
Throttle
Lekkie Pacemaker full-twist throttle
DrivetrainDrivetrainRear Cogs
Single-speed 24T hardened steel narrow-wide sprocket
Chain Tensioner
Bonnell custom CNC chain tensioner with UDH mount, compatible with 22T–28T sprockets
Chain
KMC e1, EPT (anti-rust)
Chainguide
BONNELL upper adjustable chain guide + bottom roller, compatible with 32T–38T chainrings
Crank
CYC forged, 155mm (shorter for improved ground clearance and fewer pedal strikes)
BrakesBrakesBrakes
Magura MT5, 4-piston, MDR-P floating rotors (220mm front / 203mm rear). Brakes are set up moto-style.
Brake Levers
2-finger lightweight aluminum lever blade. Flip-flop design allows for standard or moto-style setup.
AdjustmentAdjustmentsChainstay Length
Adjustable chainstay length: 440mm or 452mm
Shock Mount Positions
Two shock positions: Comfort and Sport modes
|
WheelsWheels & TiresFront Hub
Alexrims 20 x 110mm Boost, 36H e-bike hub, sandblasted finish

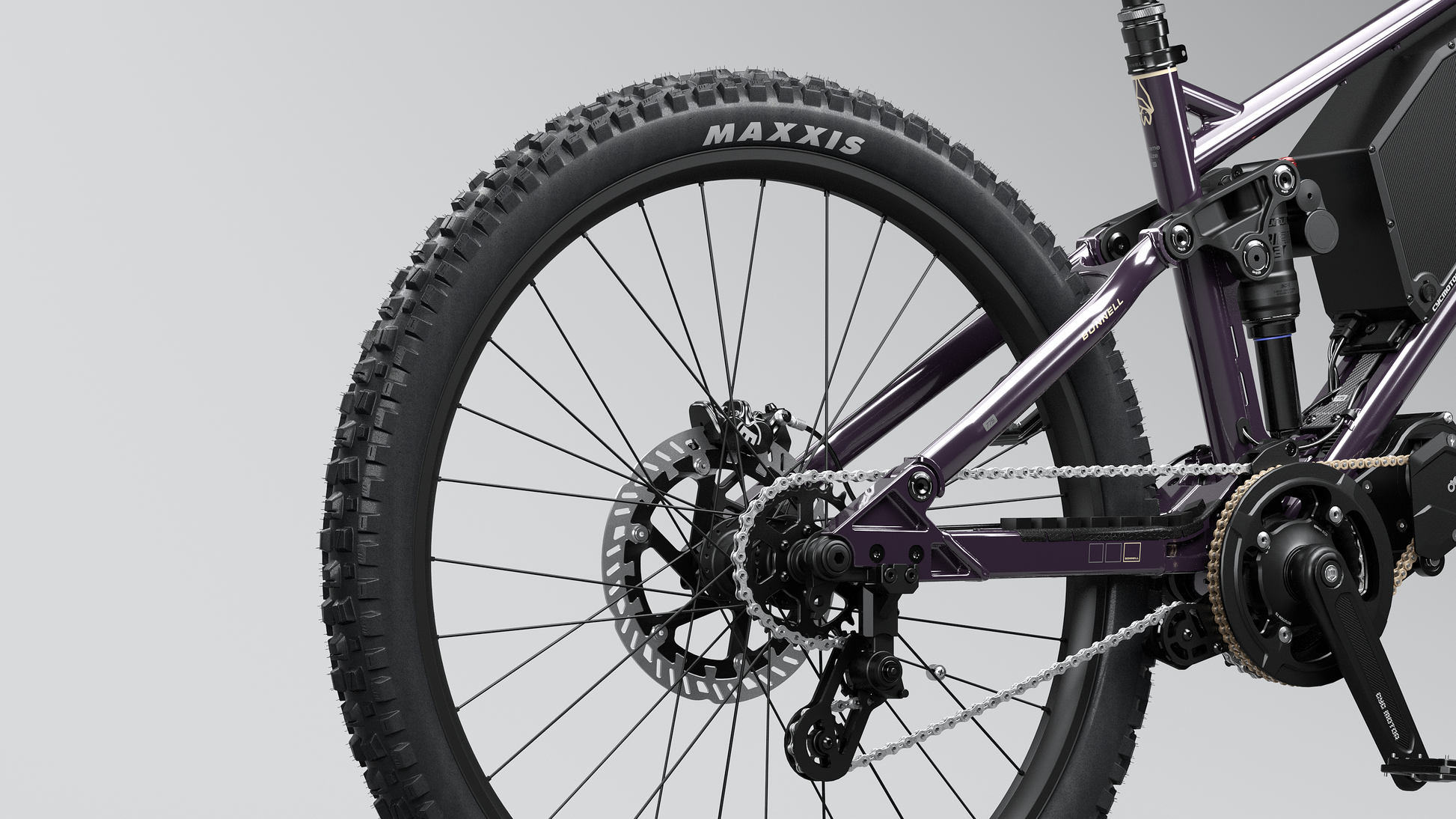

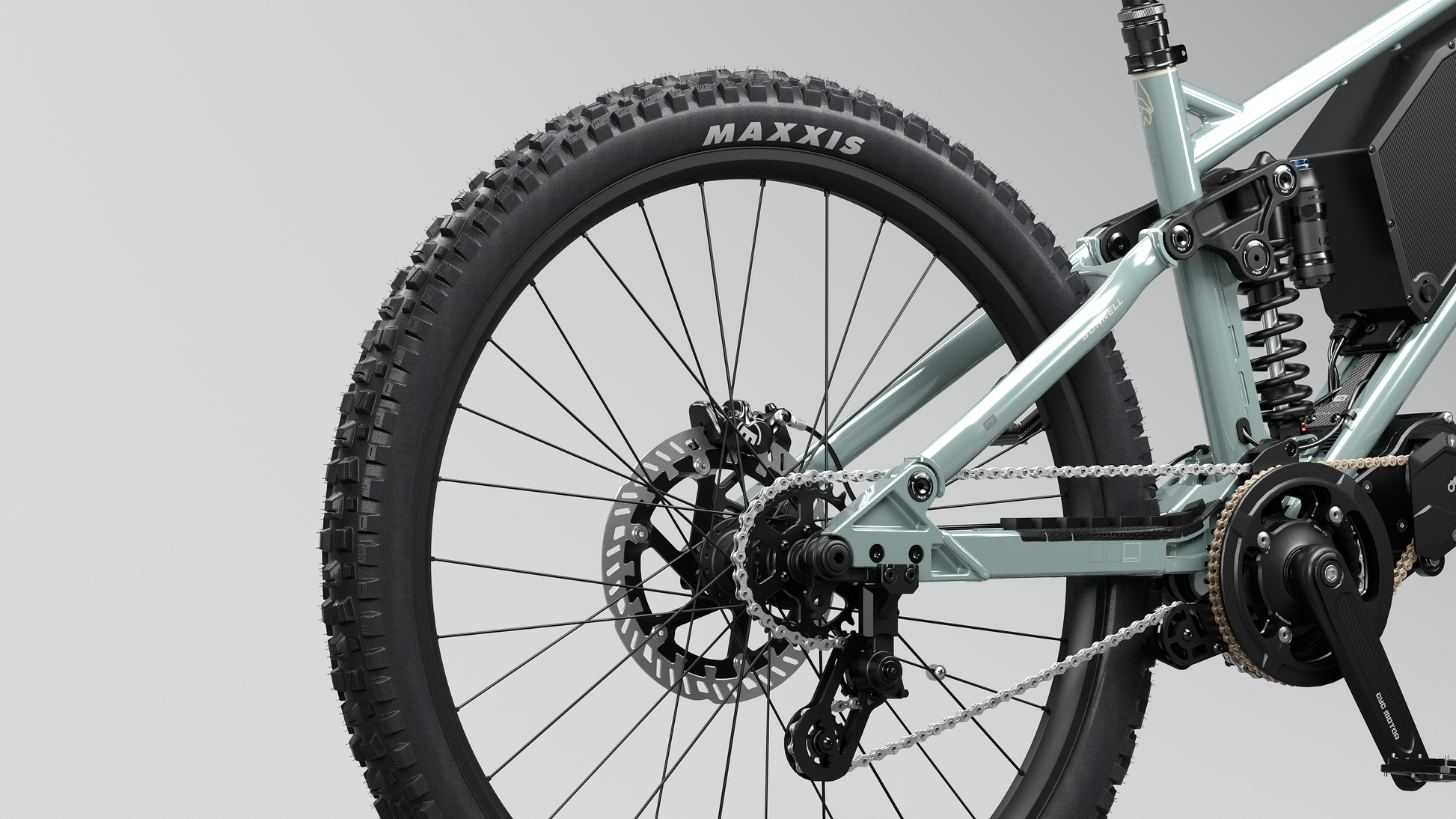

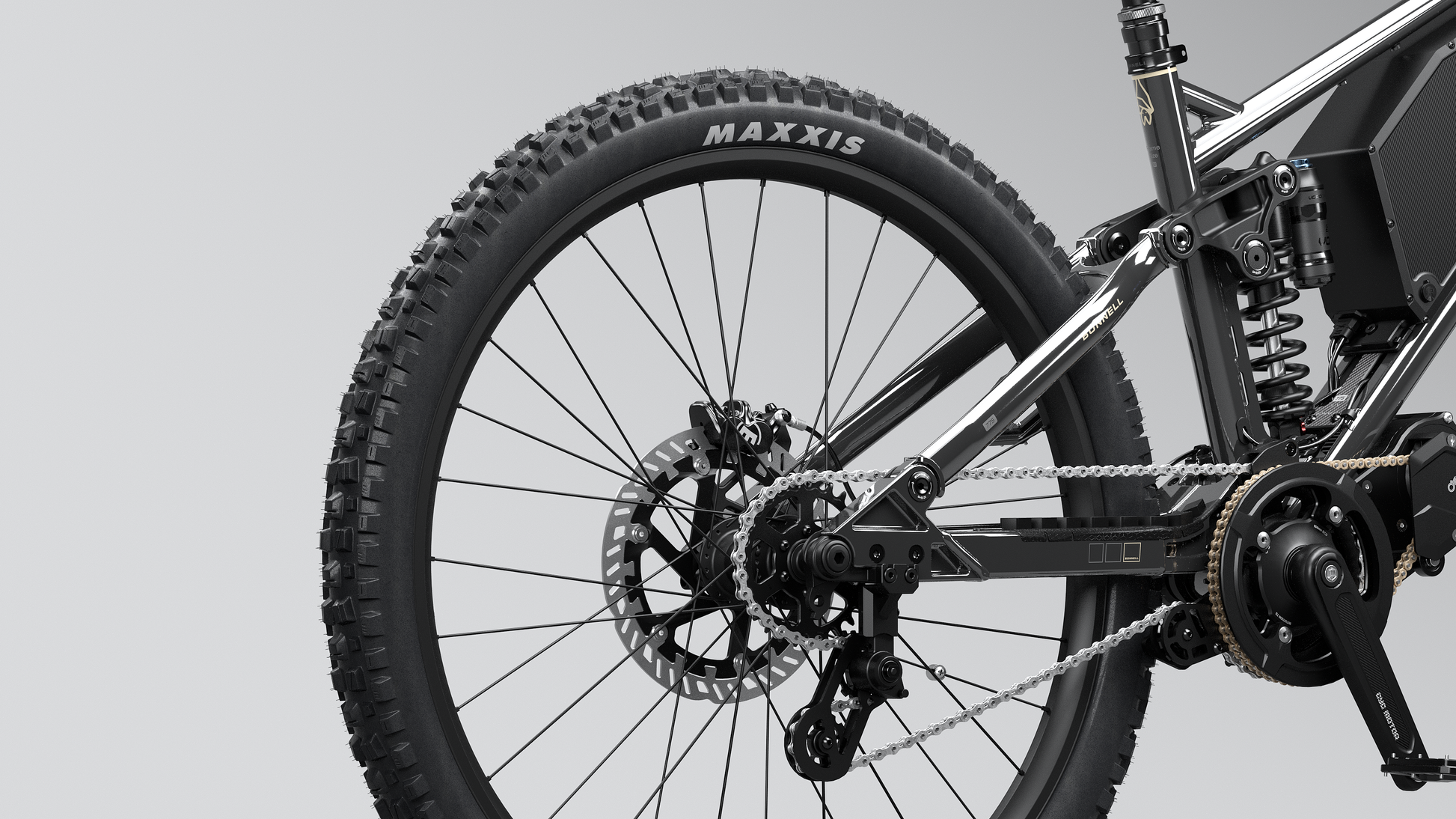

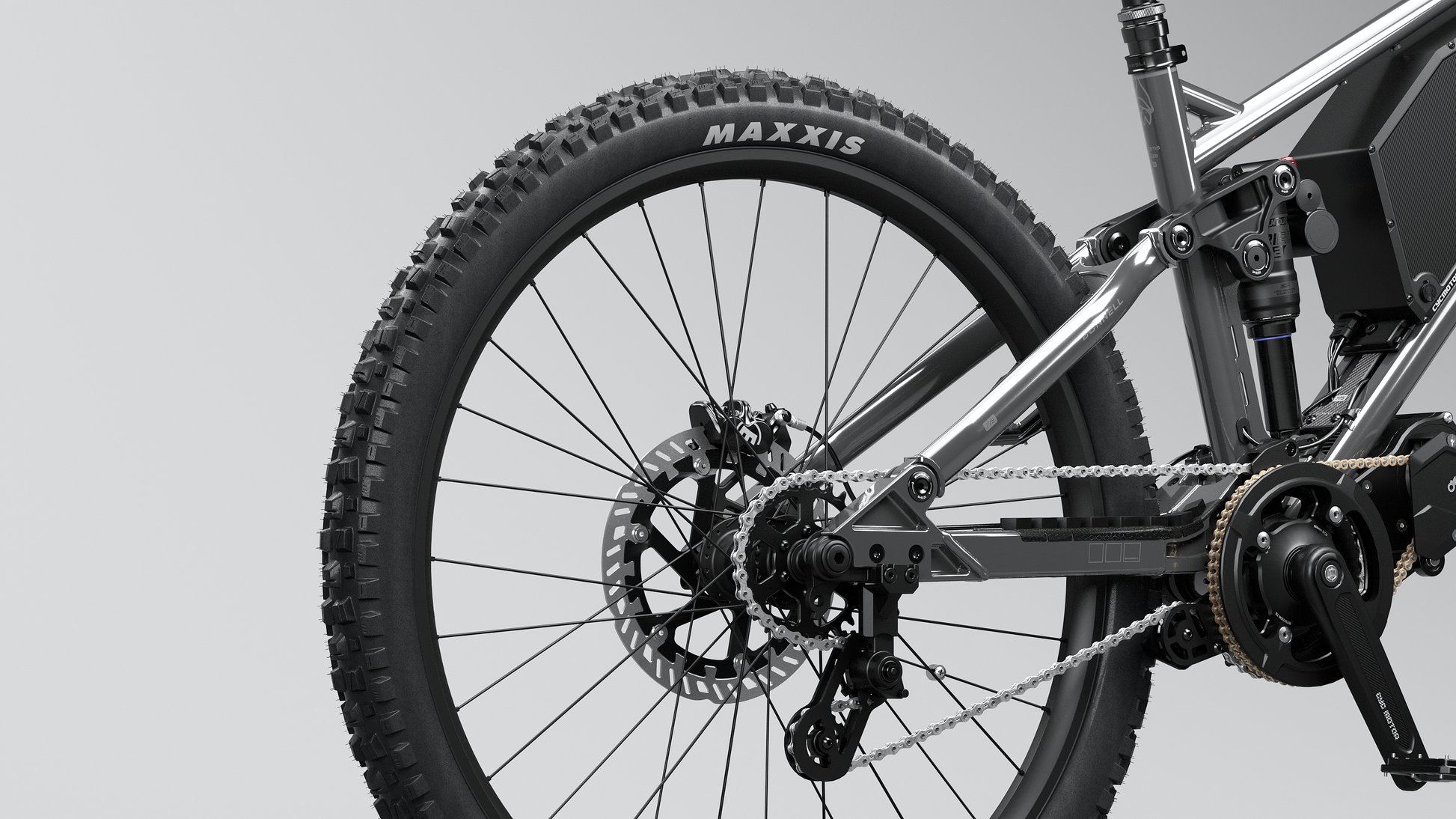

Rear Hub
BONNELL single-speed sprag clutch hub, 12 x 148mm Boost, 36H. Symmetrical spoke flange design for maximum wheel strength. 6-bolt mount for rear sprocket. Sandblasted finish
Spokes (Rear)
Reinforced rear wheel with thicker 13G stainless steel spokes, updated lacing, and upgraded nipples
Rims
Alexrims EMC 30, e-bike reinforced, 30mm internal width, tubeless-ready, 36H, sandblasted finish. Upgraded front & rear rims for added durability
Brake Type
Disc, 6-bolt
Tire Size
2.5" front and rear
Wheel Size
29" front / 27.5" rear (mullet)
Tires
Front: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5"
Rear: Maxxis Assegai DH casing, MaxxGrip, tubeless-ready, 2.5" Tubes
Maxxis Welter Weight, 2.5"
Rear Flat Protection (Insert)
Tannus Armour insert pre-installed in the rear wheel (flat resistance + rim protection from hard hits)

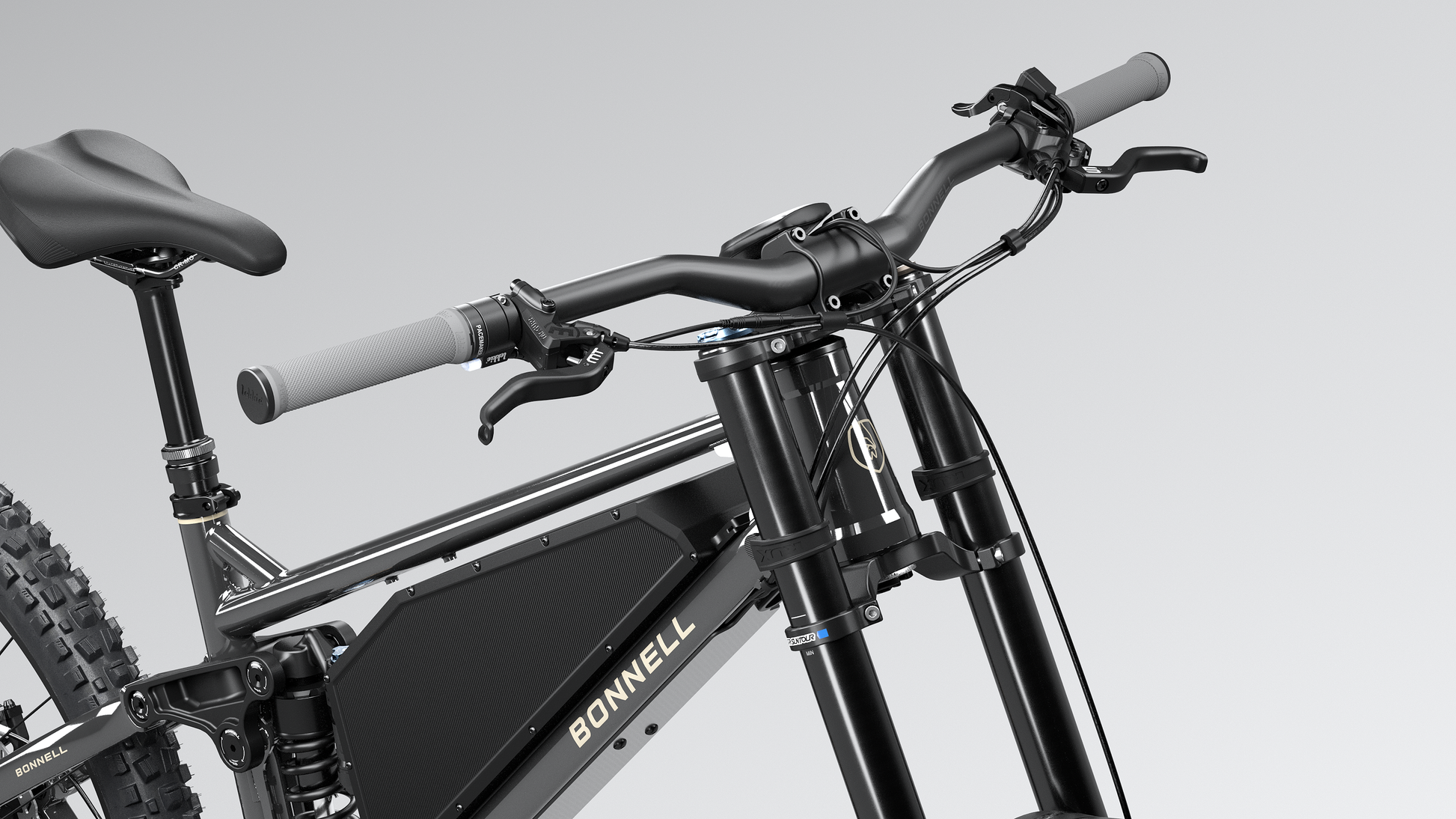

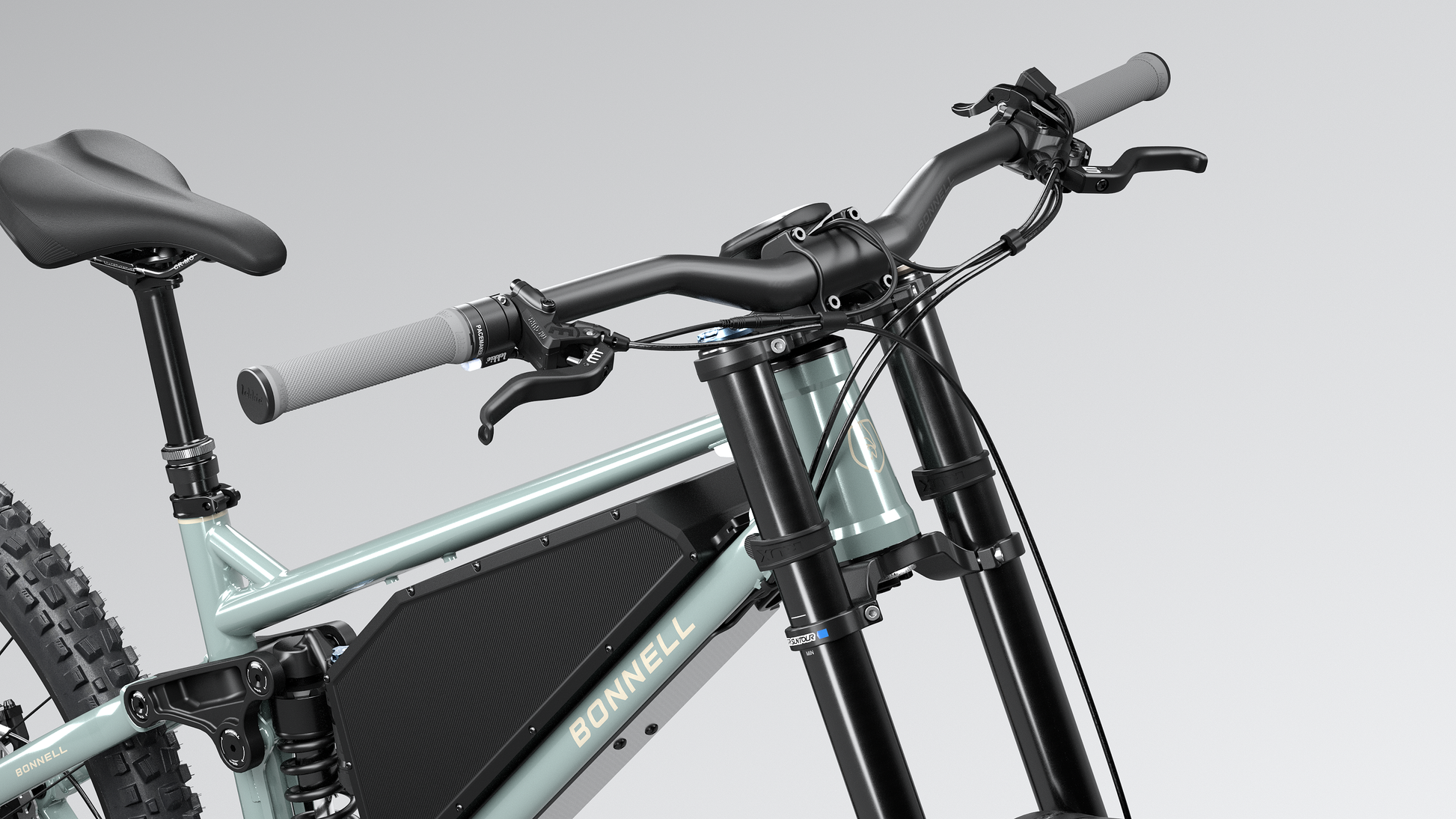

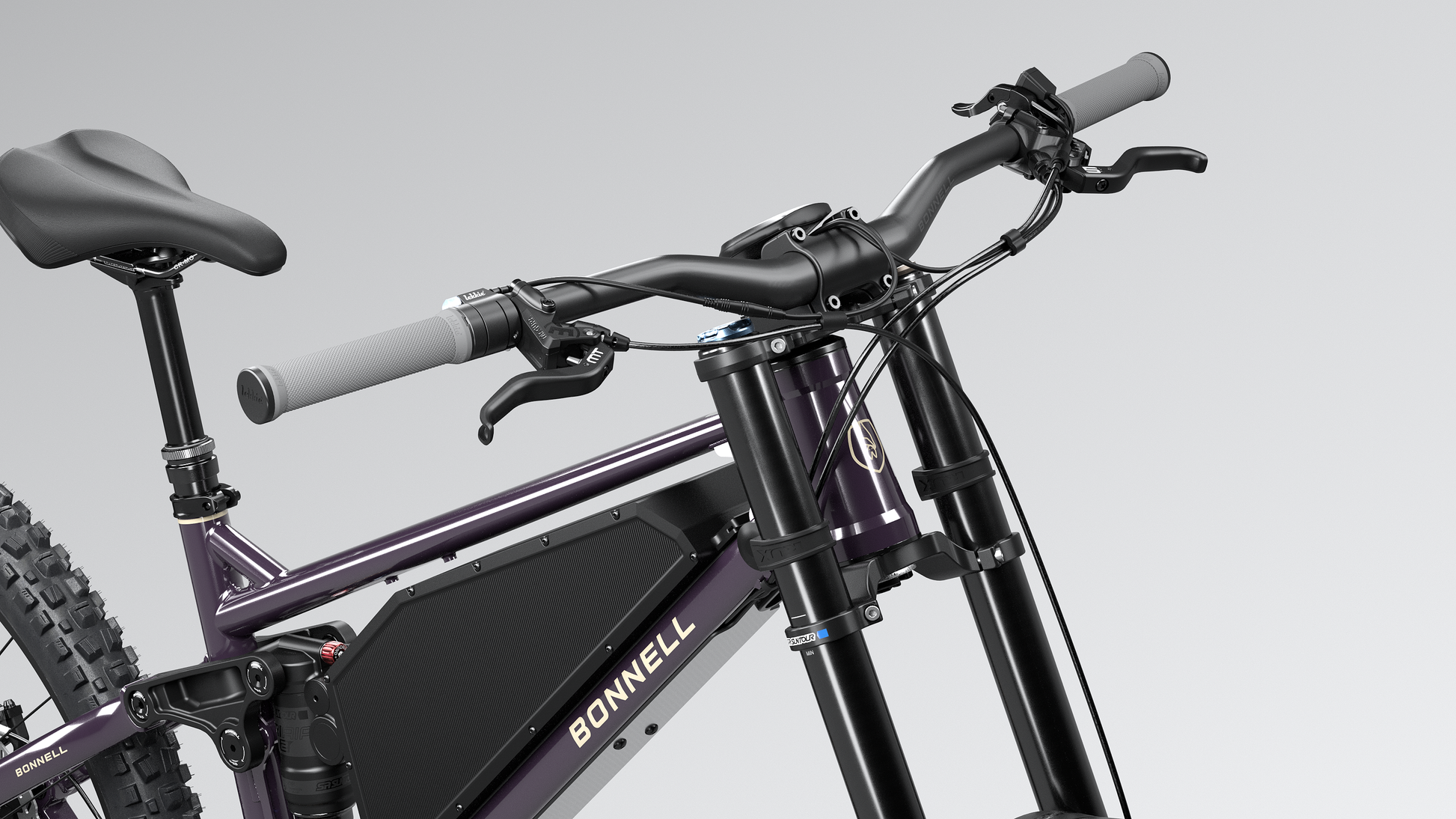

ComponentsCockpit & SeatHandlebar
Bonnell 780mm wide, 31.8mm clamp, 50mm rise, 9° backsweep, black stealth finish
Stem
Kalloy forged direct-mount stem, 44mm length, 31.8mm clamp, black stealth finish. One stem spacer included
Grips
Lekkie single lock-on grip / full-twist throttle, soft rubber, black

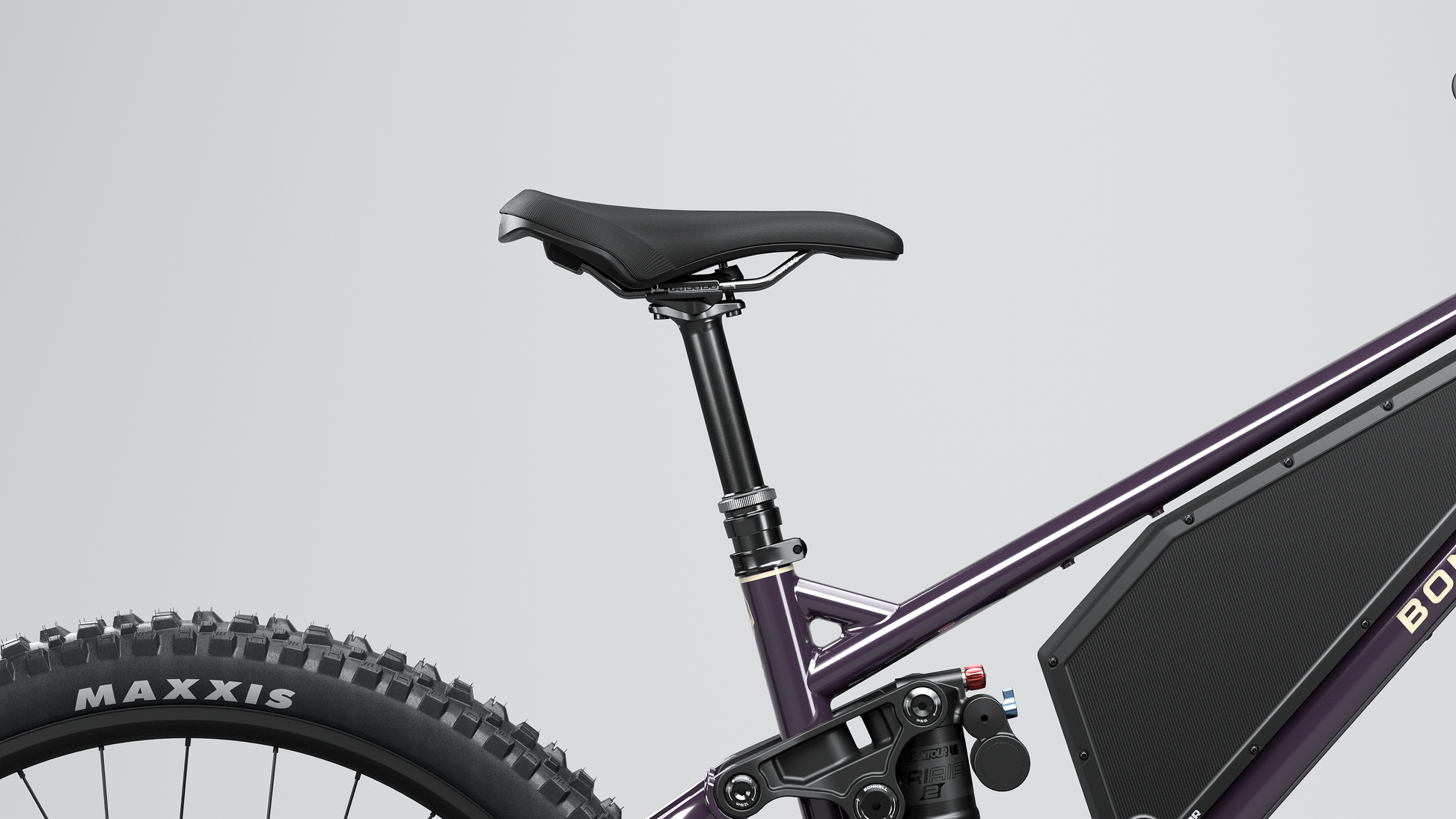

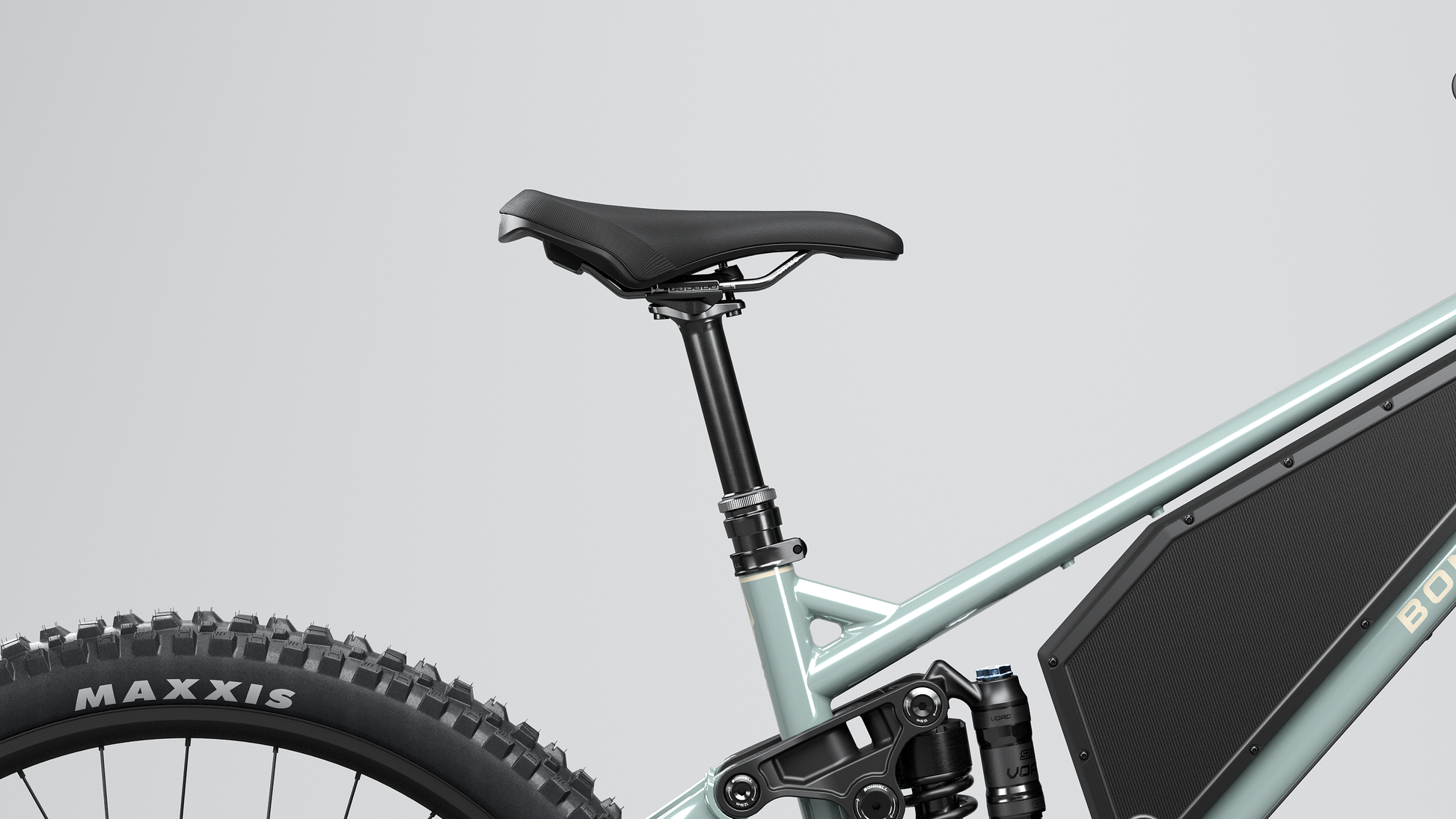

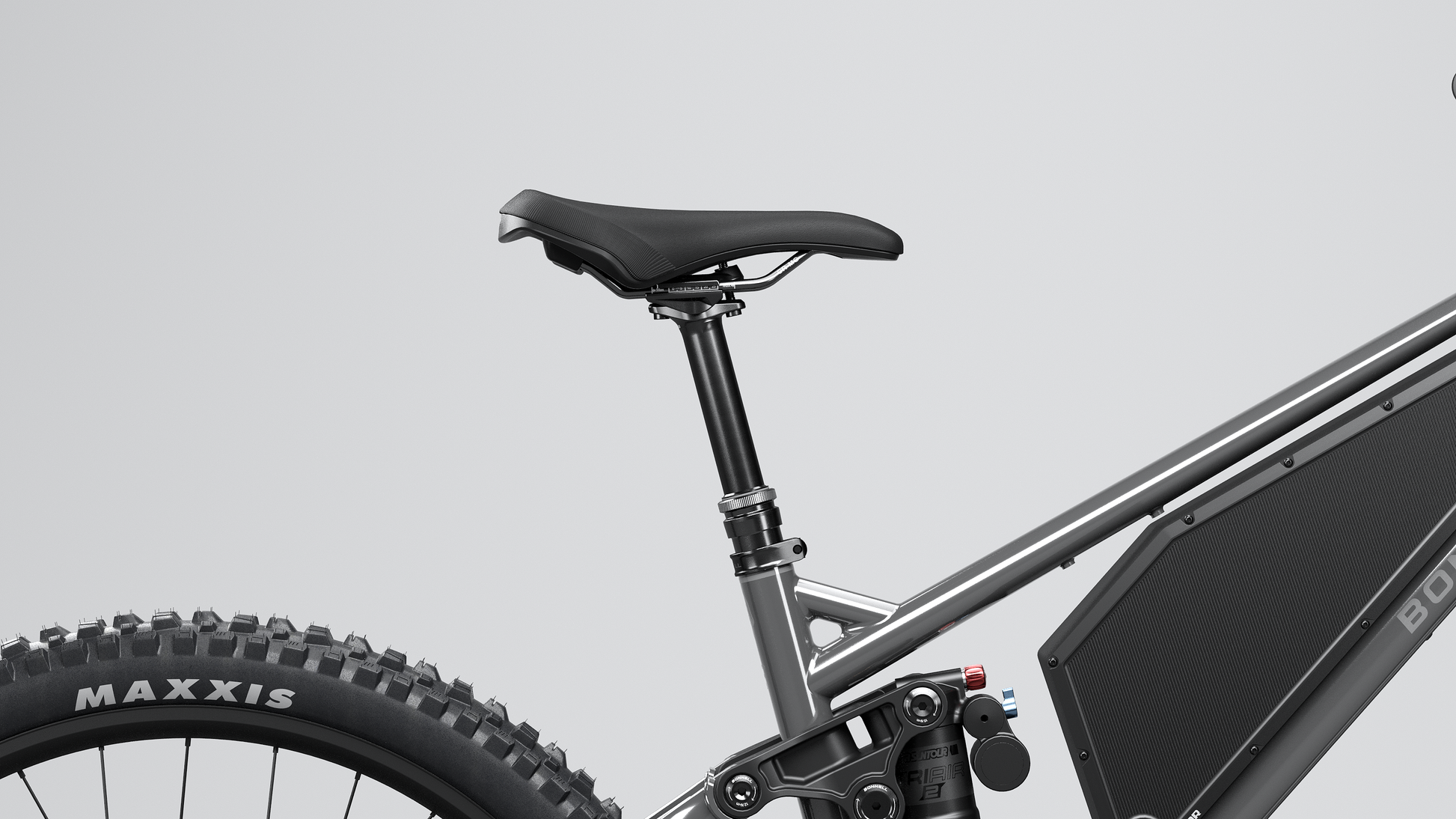

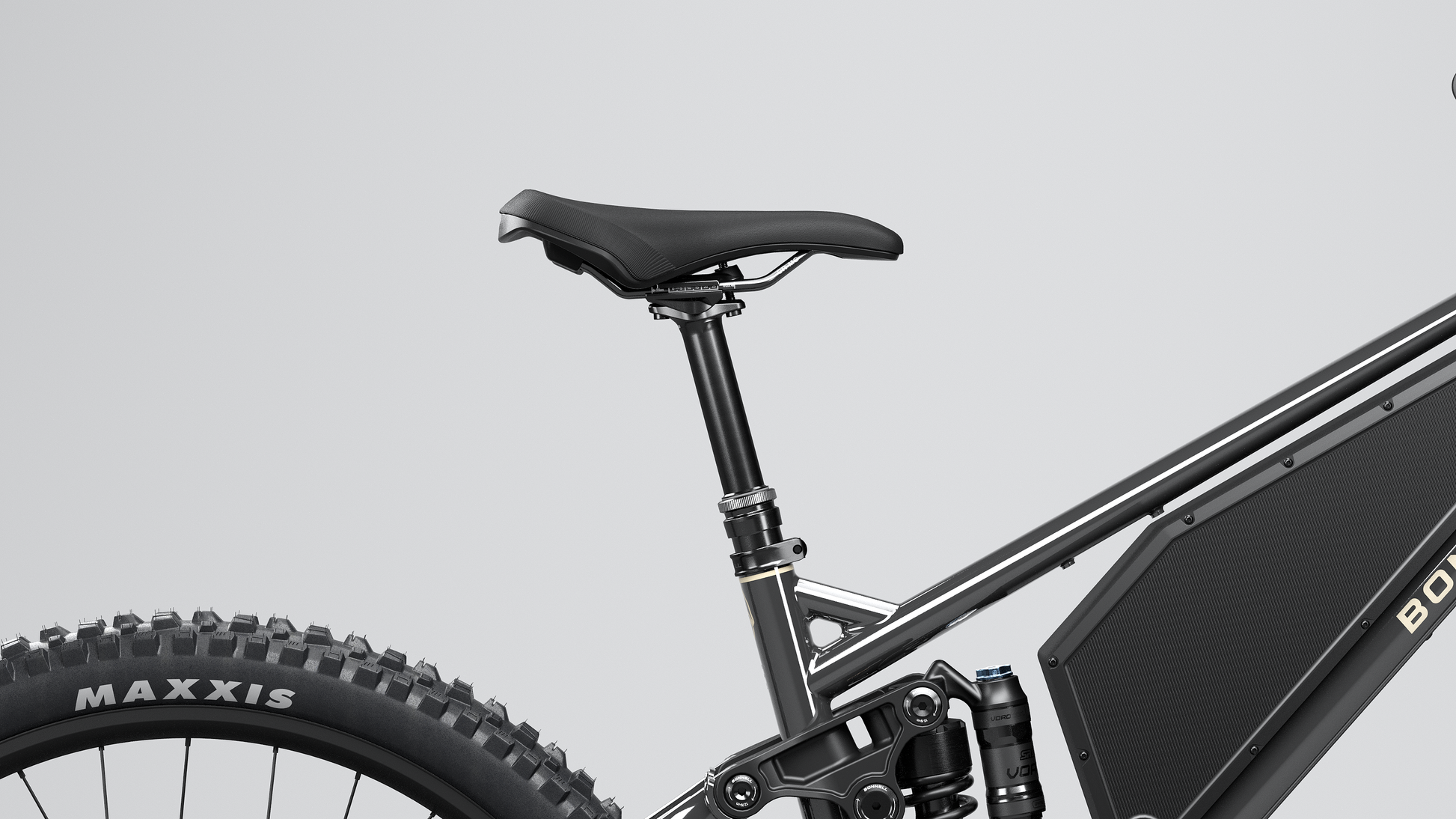

Saddle
Bonnell by Velo, short-nose saddle with reinforced sides, chromoly rails, “I-carry” transport handle
Seat Clamp
Bonnell 34.9mm single-bolt seat clamp, black stealth finish
Seatpost
Tranz-X 30.9mm dropper post, 2-bolt saddle clamp, 7075 aluminum, hard-anodized. Adjustable travel: 140–170mm (M), 170–200mm (L/XL)
Seatpost Lever
Tranz-X GL 1x lever
ConnectivitySensorsWheel Sensor
CYC Bluetooth speed sensor
ExtraExtraPedals
Bonnell aluminum flat pedals, 110 × 98mm platform, 17mm thick, sealed bearing + bushing construction
Tubeless Valves
2 tubeless valves included in the box
Multi Tool
Bonnell 13-function multi tool
Suspension
Shock pump
